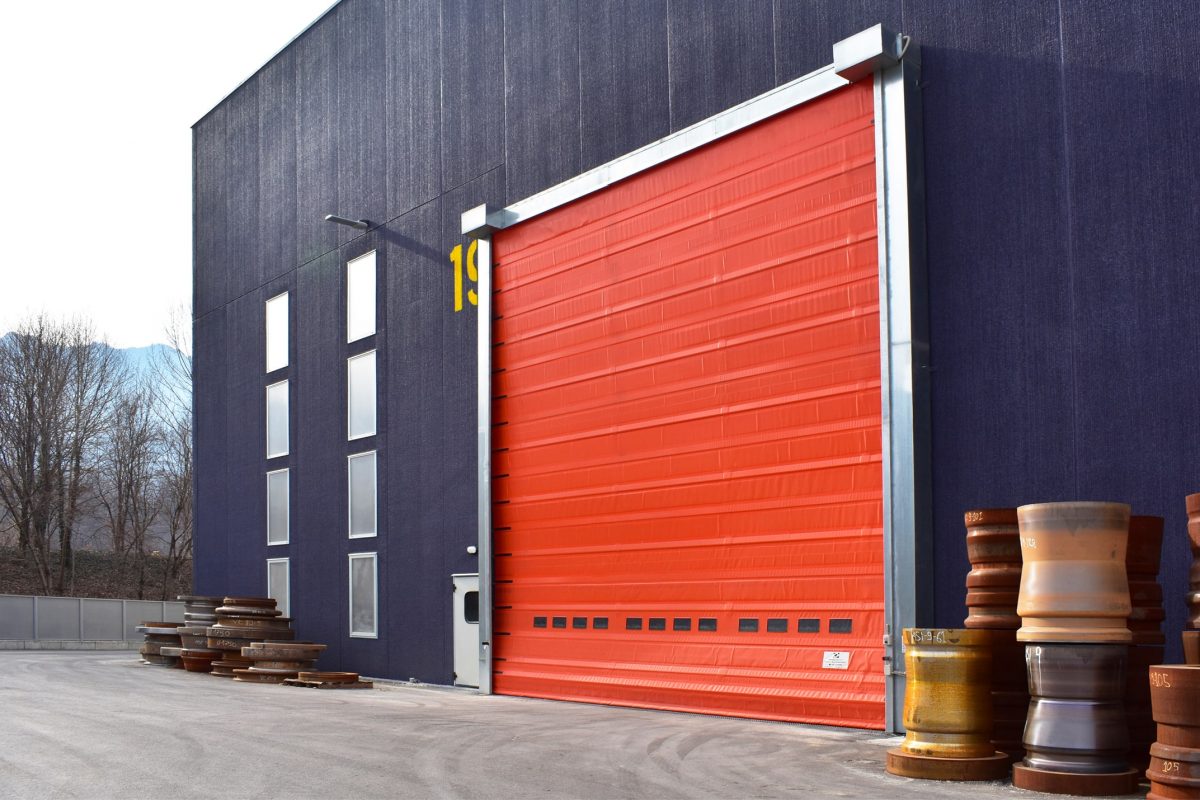

Rapid industrial doors
Particularly suitable for openings where frequent passages are required, as partition between contiguous rooms or to close isolation areas. They are available in roll-up or fold-up versions.
The rapid doors offer an excellent level of insulation and protection of passages that require frequent daily openings. Characterized by the high operating fabric speed, they are divided into two types: industrial roll-up doors and high-speed fold-up doors.
Roll-up doors have the advantage of a very fast vertical rolling and reduced overall dimensions. Rapid roll-up doors are suitable solutions for both internal and external use.
Rapid folding doors have a very fast vertical folding system and high wind resistance. Particularly suitable for outdoor, they can also be used inside a building.
01
/
10

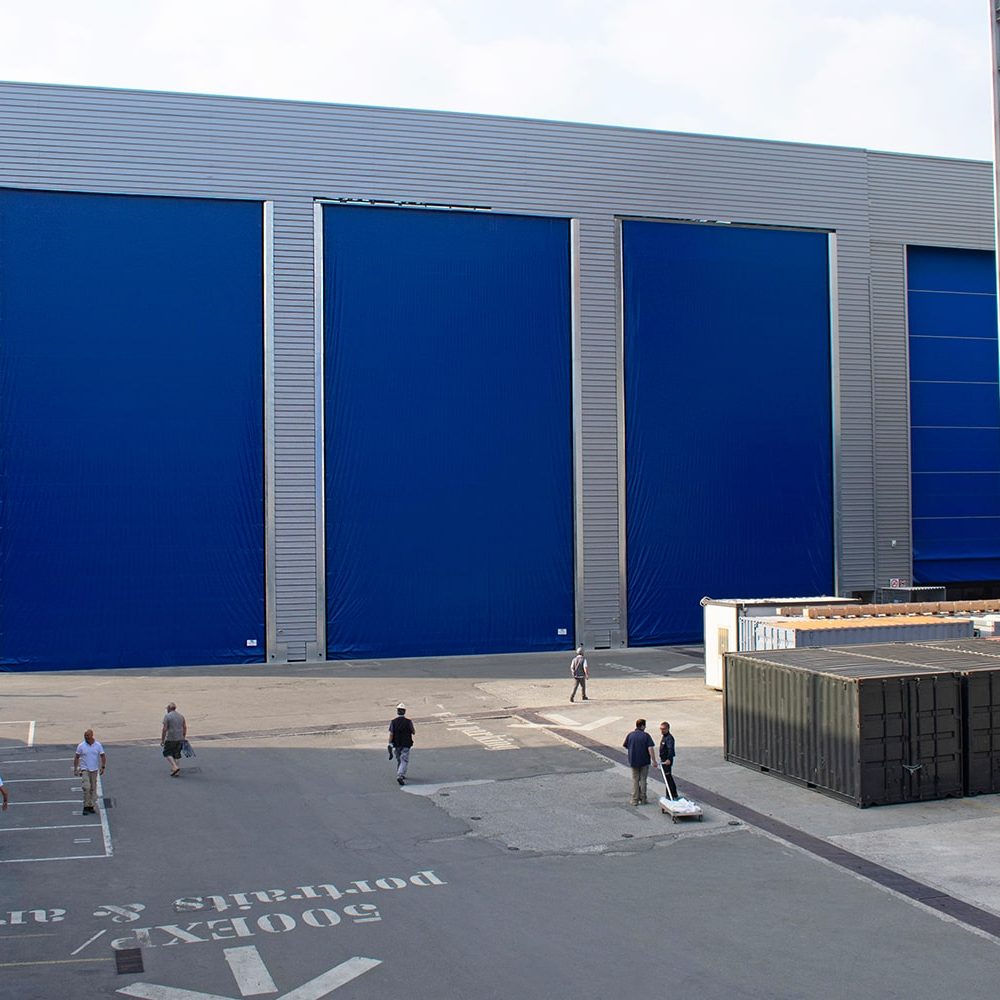

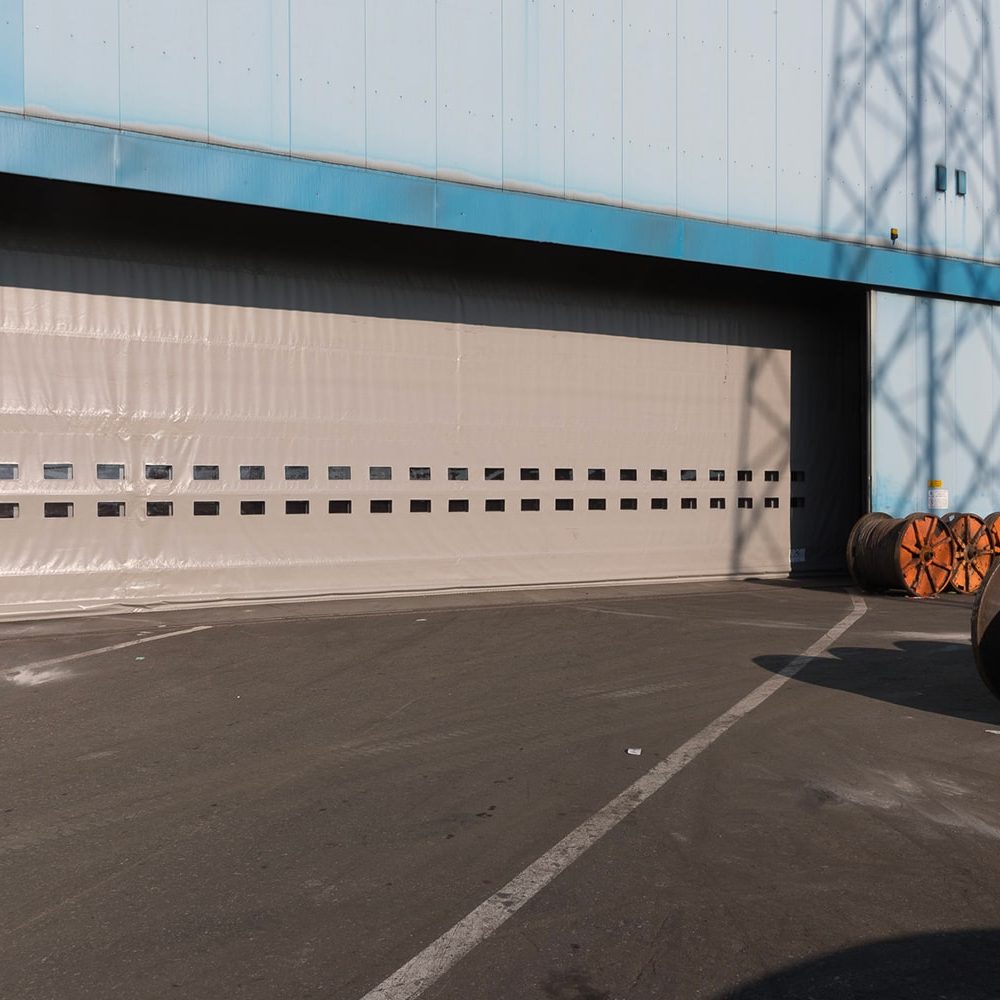

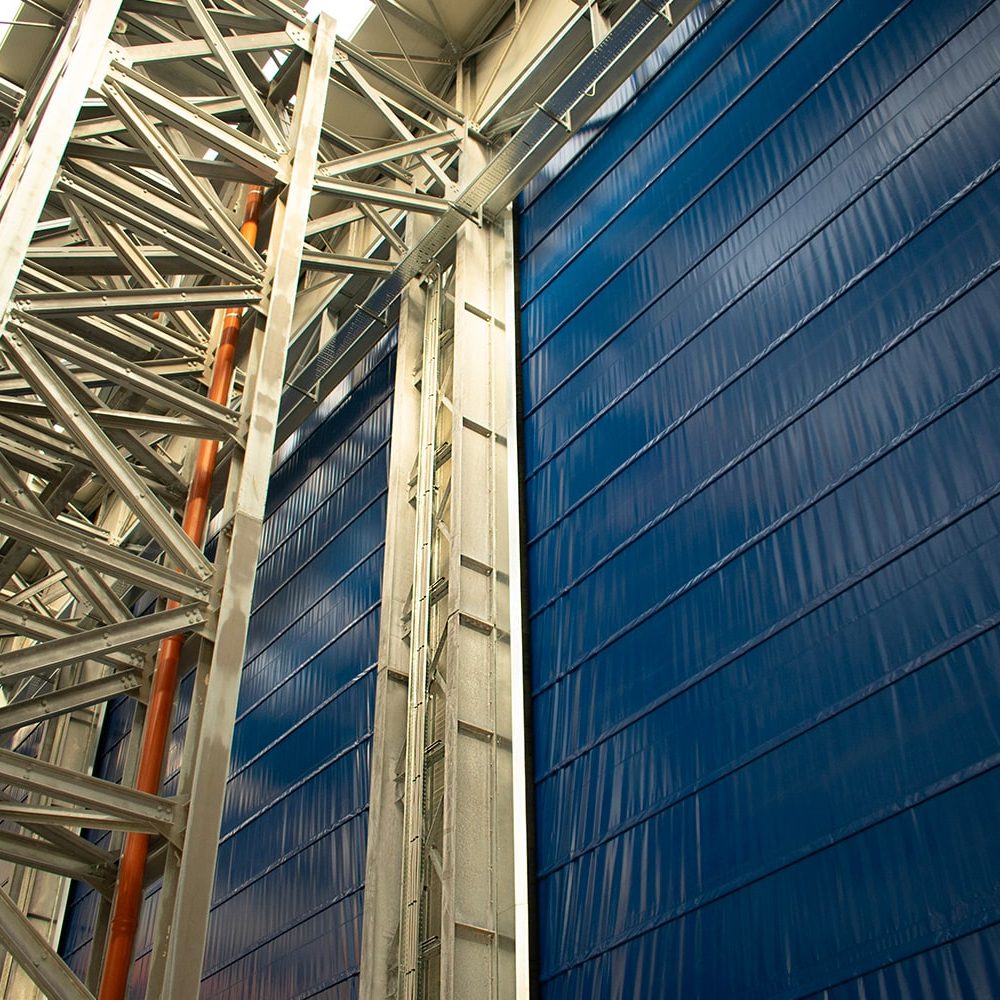

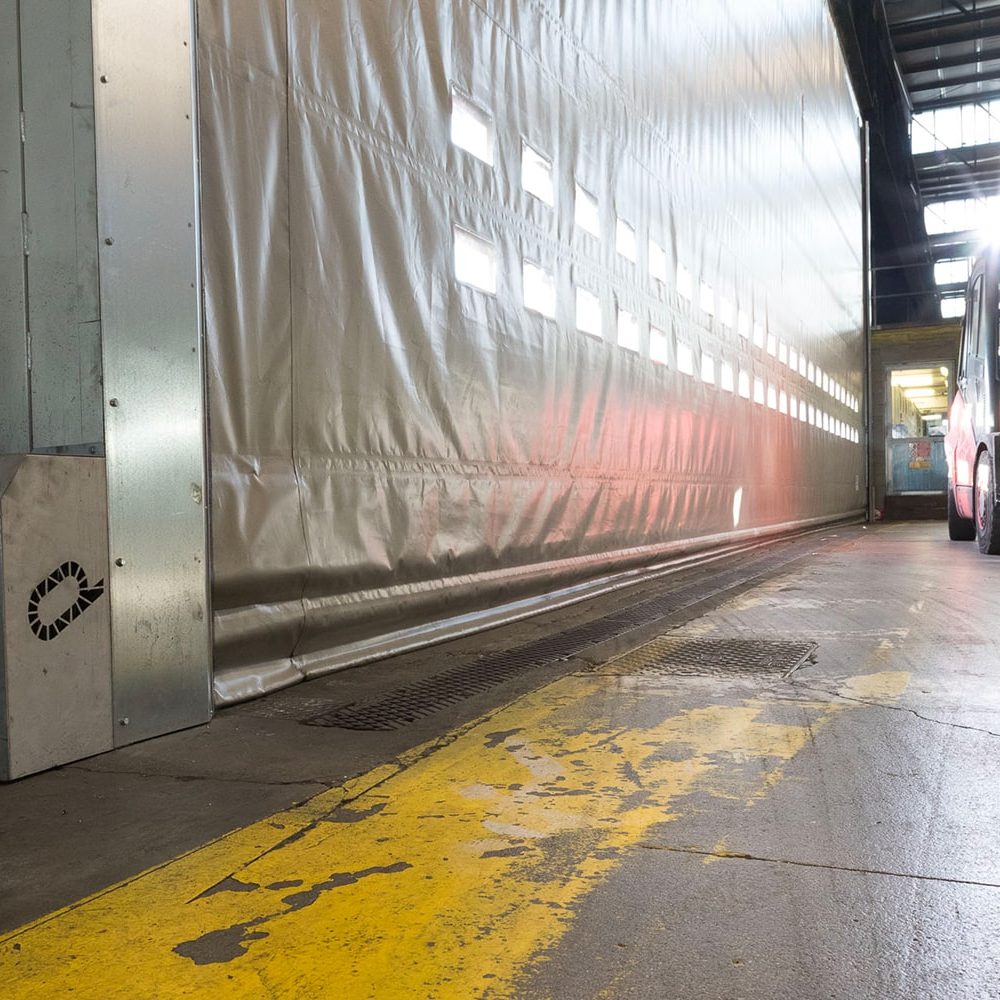

Saildoor® rapid automatic fold-up door
High performance fold-up door, wind resistant up to class 5 of the Norm EN 12424, suitable for big dimensions.
More info?
Find out how our high-speed fold-up door was conceived, designed and built. It boasts the highest class of wind resistance.
Specifications
Installation:
inside/outside
Pillars:
shaped galvanised steel beams with covering case in press-curved plate in galvanised steel
Crossbeam:
not mechanised with the only purpose of supporting the cloth.
Curtain:
Self-extinguished PVC class II, 670 gr/sq. m or 900gr/sq. m, stiffened with steel cables
Windows:
Windows or visibility stripes
Engine type
Nominal installation voltage 400V / 3 + T - Frequency 50 Hz - Motor power proportional to the size of the door - Gearmotors positioned on the floor level
Technical features
Average opening / closing speed 0.4 m / s – Tear fabric resistance 3000 N / 5cm - Maximum project dimensions - Doors according to the UNI EN 13241 standard - Resistance to pressure difference CL 5
differenza
di pressione
CL 5
Optional
Pneumatic / hydraulic motor for ATEX areas - Sound-absorbing curtain - Reverso system - Anti-intrusion curtain - Automatic opening
Finishing
02
/
10

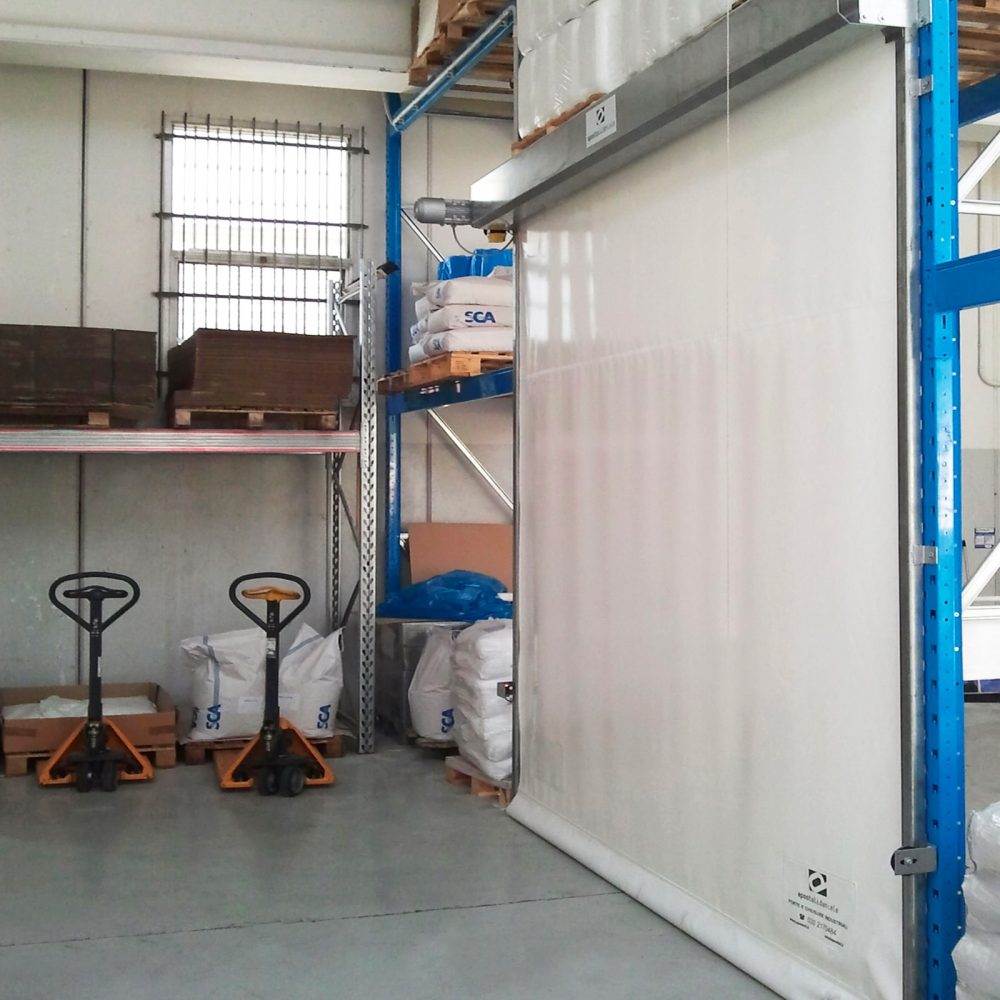

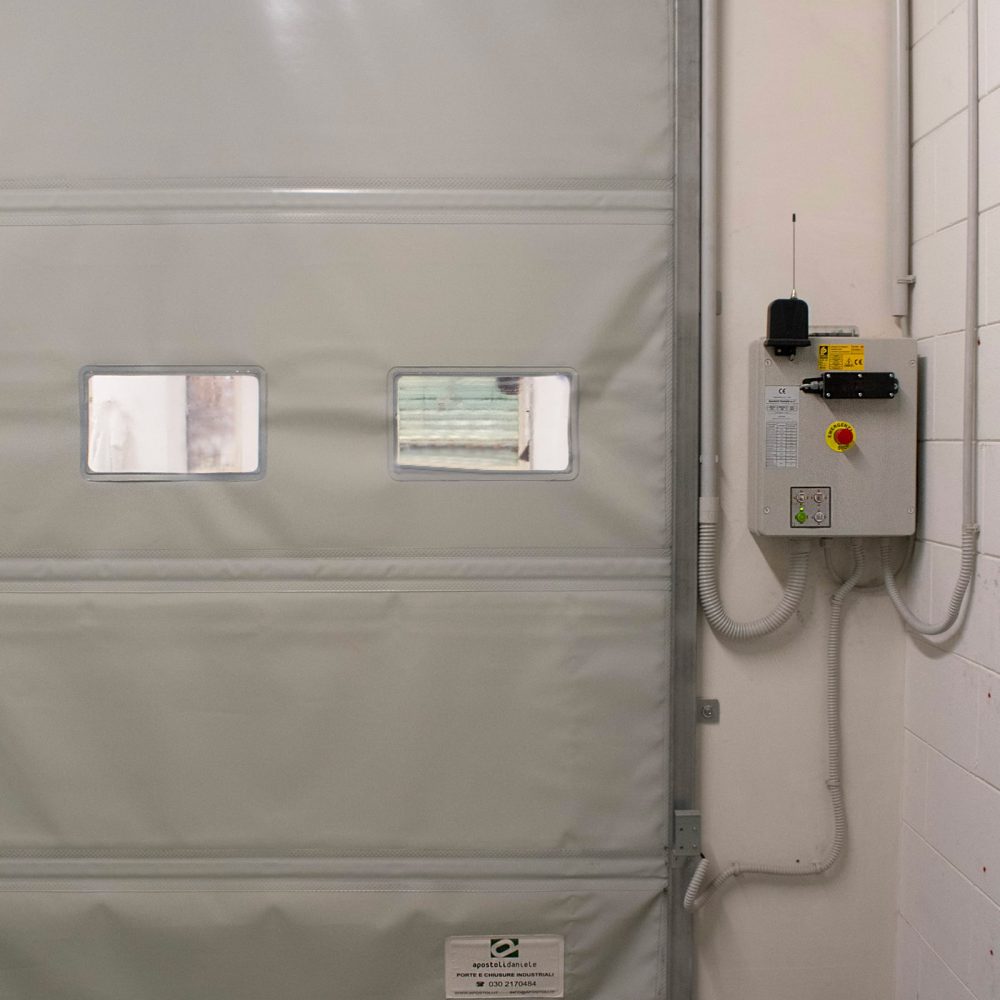

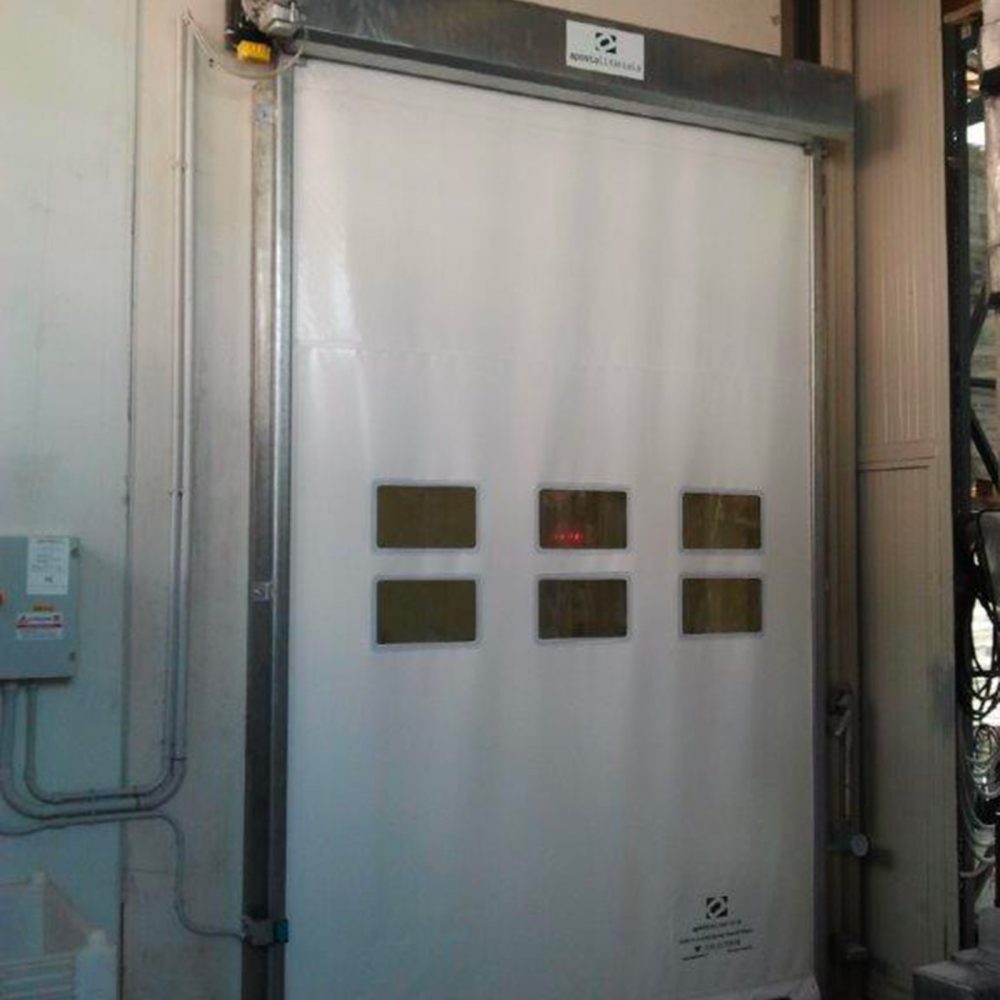

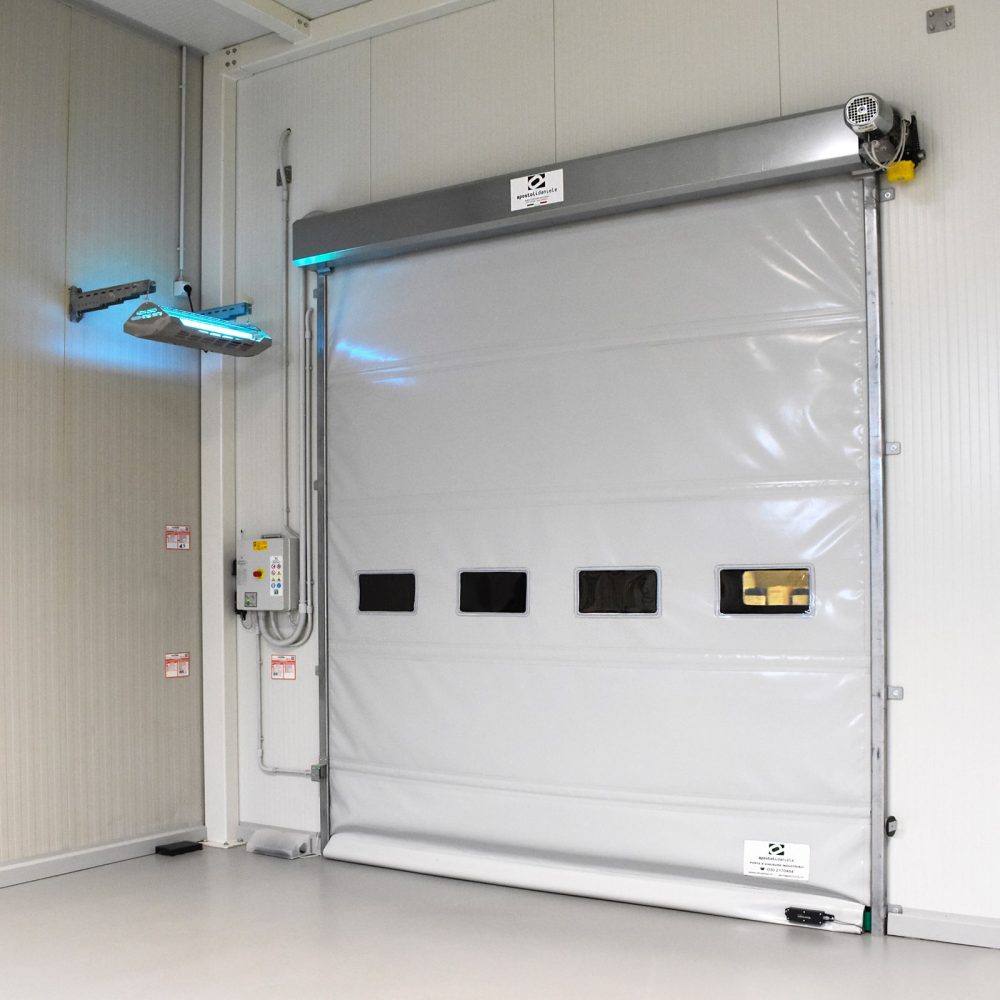

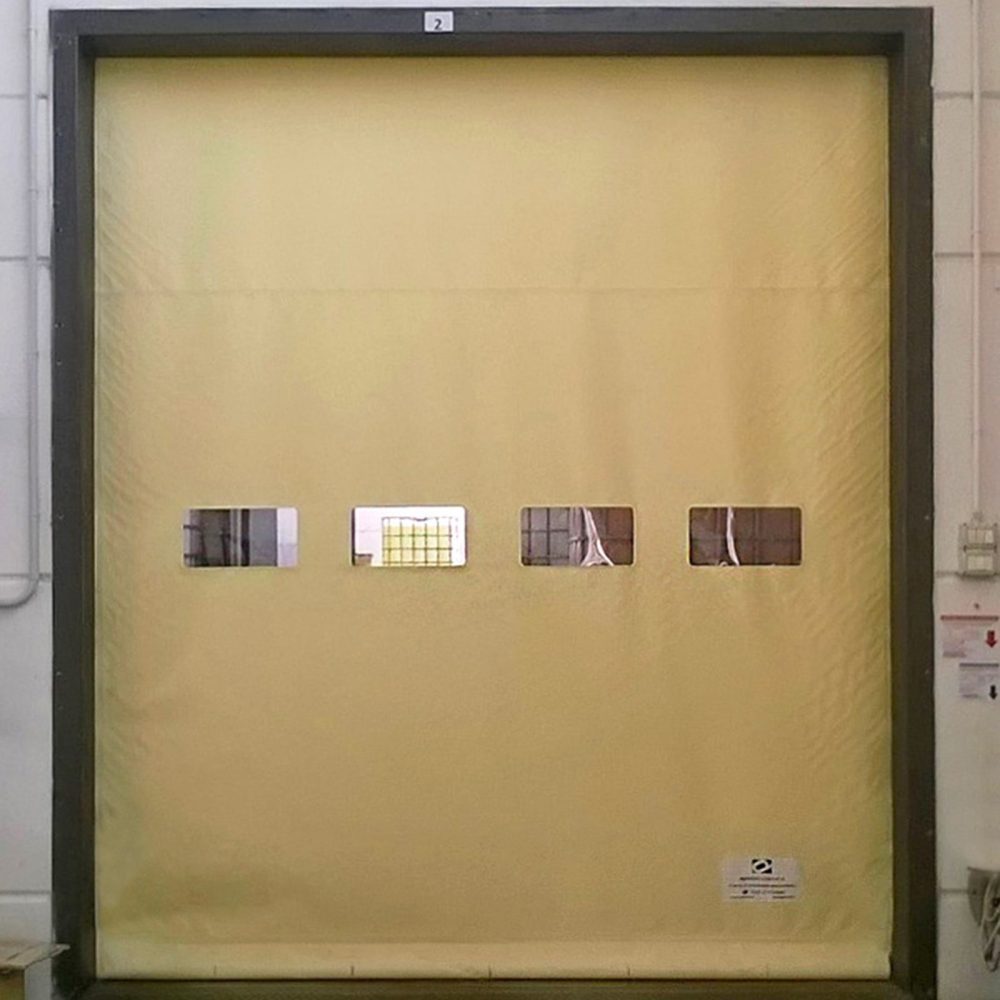

R21 rapid automatic roll-up door
Rapid automatic roll-up door, suitable for industrial spaces.
The fabric can be equipped with one or more rows of portholes or with wide visibility stripes, in proportion to the available surface, to allow visibility through the door and to improve the lighting of the neighbouring rooms.
Specifications
Installation:
inside/inside
C pillars:
in press-bending plate in galvanised steel
Crossbeam:
made with tubular steel
Curtain:
self-extinguishing PVC class II, high resistance for weight and texture, PVC rubbed
Windows:
windows or visibility stripes
Optional:
slatted curtain
Opening system
Metal detector:
automatic opening command with magnetic loops metal mass sensor
Radar:
opening command for industrial doors. It detects both people and vehicles on surfaces from 1 to 20 square meters, adjustable according to need
Remote control:
transmitter-operating range from 80 to 100 meters
Security systems
The passage control is managed and controlled in safety through one photocell with reflector. Mobile protection device on the closing edge consisting of a sensitive resistive strip that in case of contact transmits via radio with the control unit. In case of accidental impact, it determines the arrest and the immediate reopening as required by the Norm UNI EN 13241.
Motor control
Nominal installation power 400V / 3+T Frequency 50 Hz Motor power from 0,37 kW - Single speed gear motor installed outside the crossbeam (in view motor) coverings as option
Technical details
Opening/closing speed 0,7 - 1,0 m/s - Resistance to curtain tears 3000 N/5cm - Max. Dimensions 5000x5000 mm - Max. Strength on primary edge UNI EN 13241 - Doors according to the Norm UNI EN 13241
Finishing
03
/
10

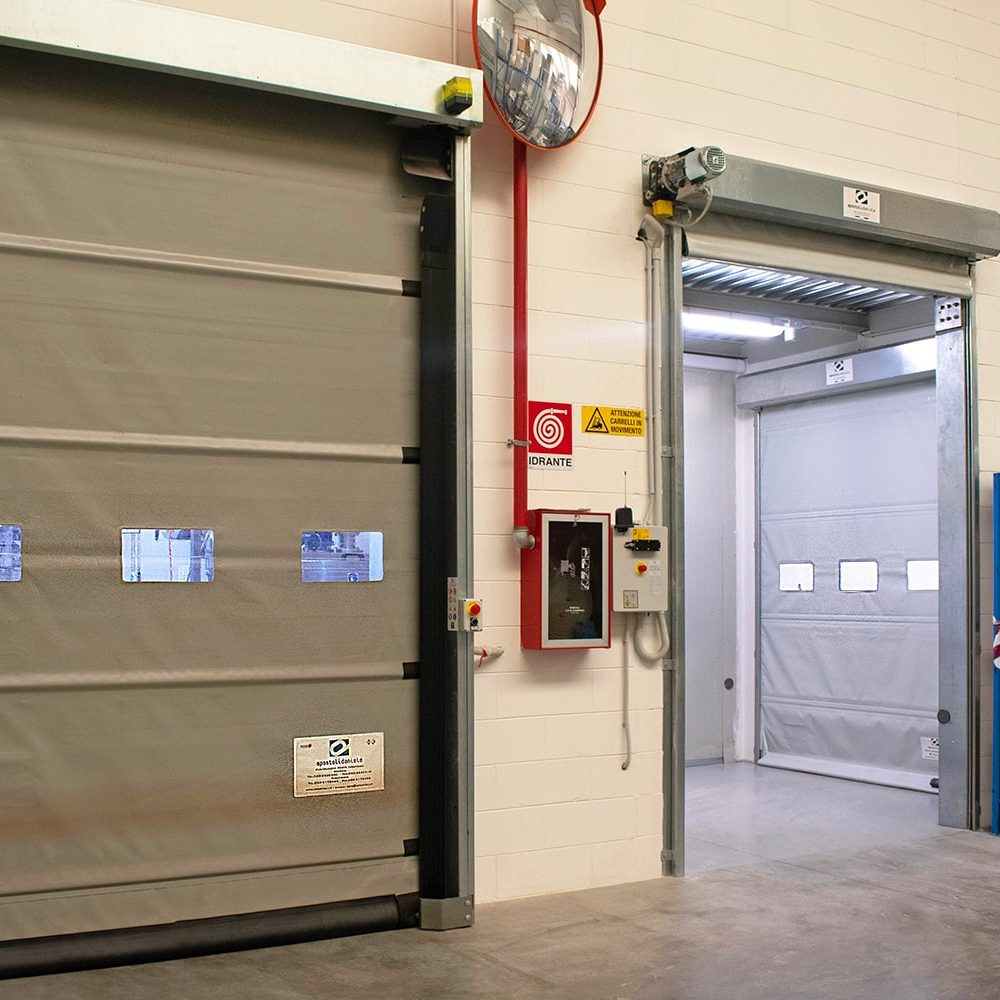

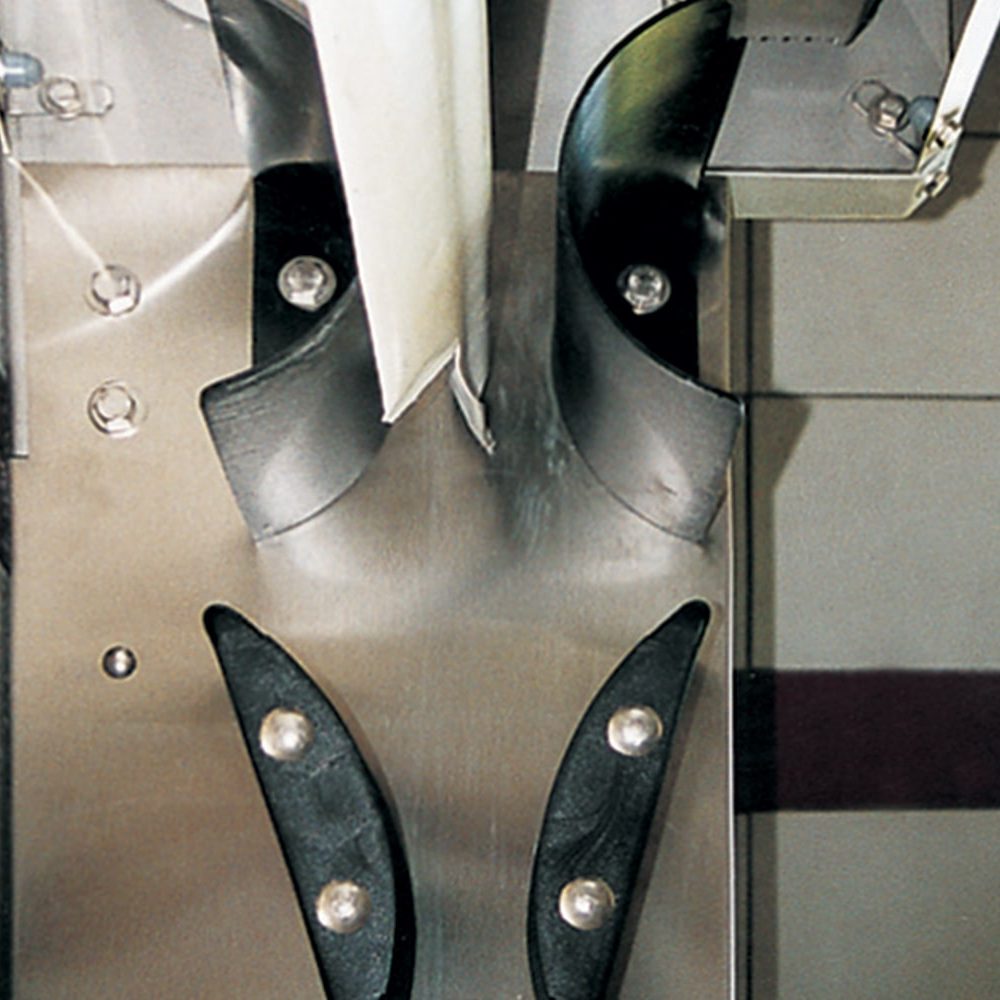

Rapid automatic roll up door Mavifood
Auto-repair & anti-damage
Rapid automatic roll-up door suitable for the separation of industrial spaces for the agro-food sector.
Specifications
Installation:
inside/inside
Crossbeam:
in press-bending plate in galvanised steel, sloping and finalised to the washing with water jet in order to avoid its stagnation
Pillars:
in press-bending plate in galvanised steel, stainless steel on demand
Curtain:
self-extinguishing PVC class II, anti UV and anti mould, stiffened by composite tubes
Auto-repair:
the open rails allow the automatic curtain reinsertion in case of coming out
Anti-damage:
the flexible rails and tubes avoid permanent damages to the curtain and structure
Windows:
windows or visibility stripes
Optional:
slatted curtain
Opening system
Metal detector:
automatic opening command with magnetic loops metal mass sensor
Radar:
opening command for industrial doors. It detects both people and vehicles on surfaces from 1 to 20 square meters, adjustable according to need
Remote control:
transmitter-operating range from 80 to 100 meters
Security systems
The passage control is managed and controlled in safety through two transmitting photocells (one for each door side) and two receiving ones with amplifier. Mobile protection device on the closing edge consisting of a sensitive resistive strip that in case of contact transmits via radio with the control unit. In case of accidental impact, it determines the arrest and the immediate reopening as required by the Norm UNI EN 13241.
NO TOUCH SECURITY SYSTEM
Motor control
Nominal installation power 400V / 3+T Frequency 50 Hz - Motor power from 0,37 a 0,75 kW - Single speed gear motor installed integrated into or outside the crossbeam
Technical details
Opening/closing speed 0,7 - 1,0 m/s - Resistance to curtain tears 3000 N/5cm - Rails min. traction resistance 45.000 N - Max. Strength on primary edge UNI EN 13241 - Max. Dimensions 4000x4000 mm – Doors according to the Norm UNI EN 13241
BIM objects
Finishing
White – Army green
04
/
10

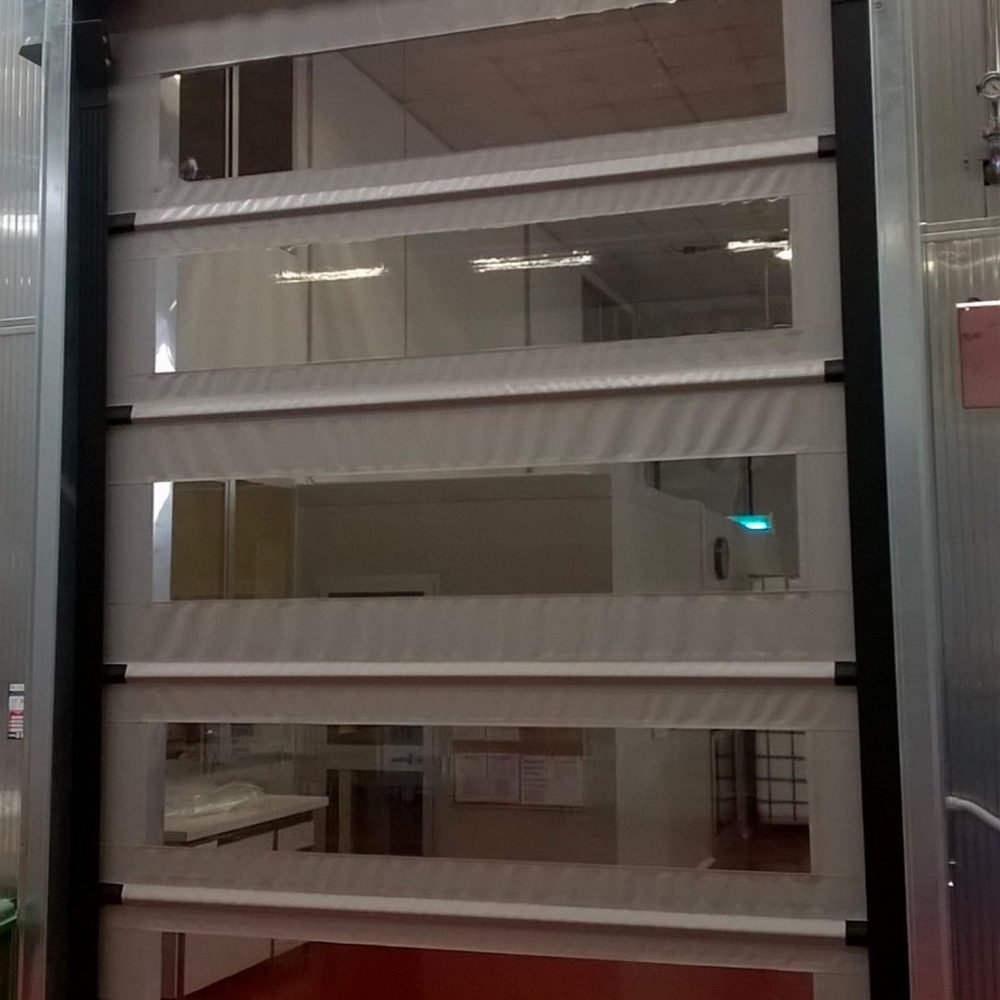

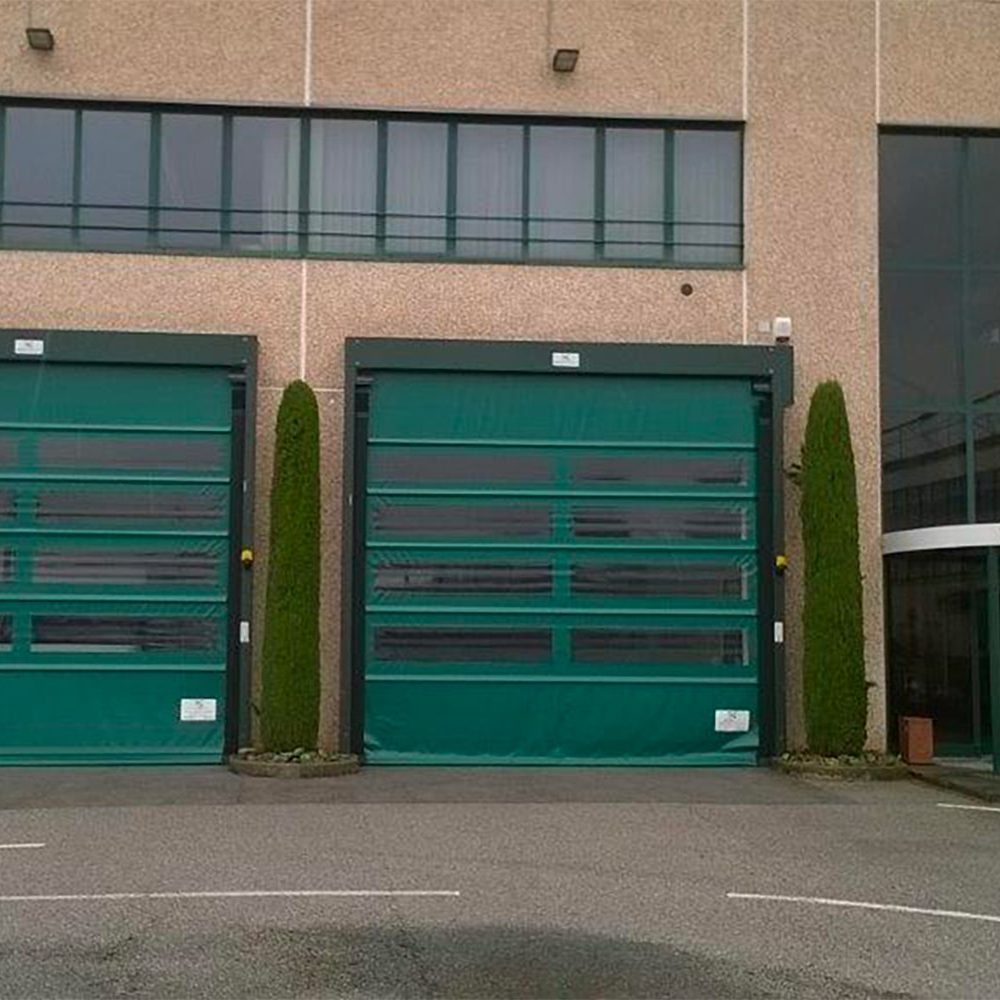

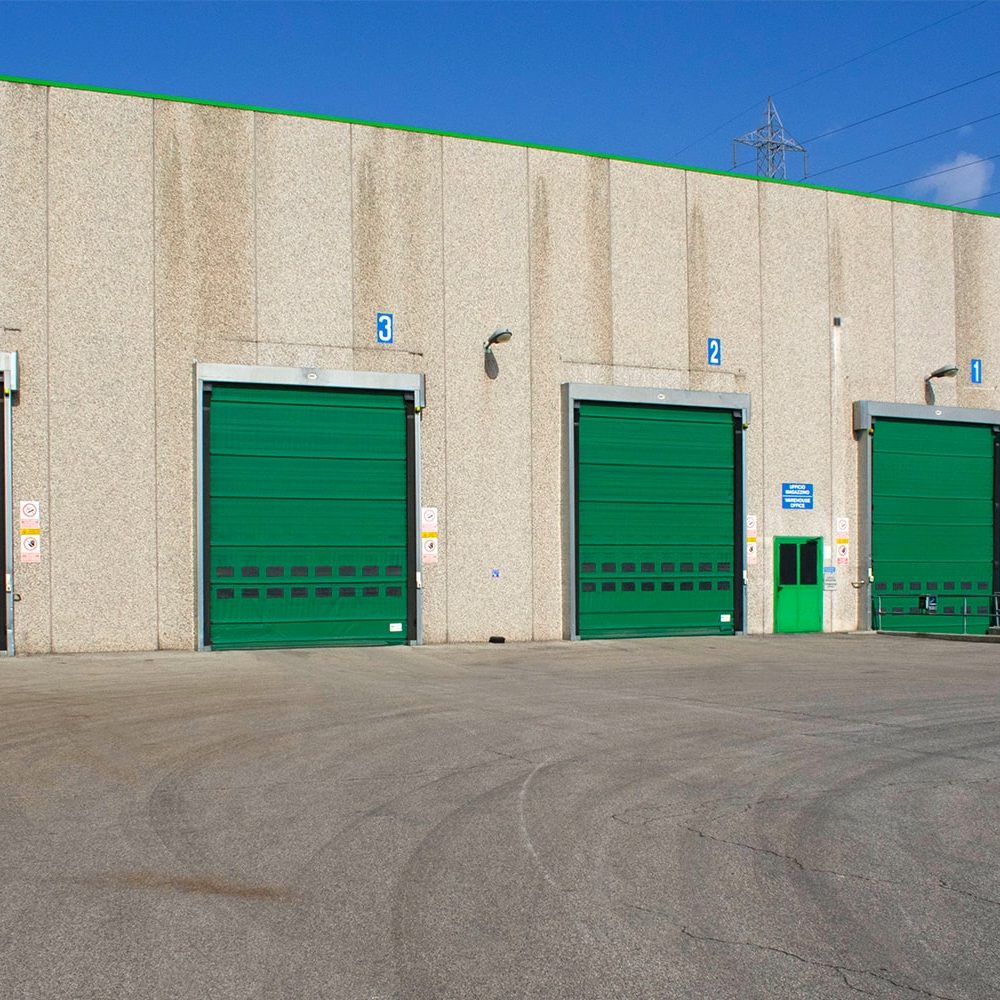

Rapid automatic roll up door AD
Auto-repair & anti-damage
Rapid automatic roll-up door, suitable for the separation of contiguous industrial buildings and for closing external access points.
Specifications
Application:
inside/inside, inside/outside
Pillars and crossbeam:
in press-bending plate in galvanised steel, RAL or stainless steel on demand
Curtain:
self-extinguishing PVC class II, anti UV and anti mould, stiffened by tubes.
Auto-repair:
the open rails allow the automatic curtain reinsertion in case of coming out.
Anti-damage:
the flexible rails and tubes avoid permanent damages to the curtain and structure.
Windows:
windows or visibility stripes
Optional:
slatted curtain, semi-automatic counterweight
Opening system
Metal detector:
automatic opening command with magnetic loops metal mass sensor
Radar:
opening command for industrial doors. It detects both people and vehicles on surfaces from 1 to 20 square meters, adjustable according to need
Remote control:
transmitter-operating range from 80 to 100 meters
Security systems
The passage control is managed and controlled in safety through two transmitting photocells (one for each door side) and two receiving ones with amplifier. Mobile protection device on the closing edge consisting of a sensitive resistive strip that in case of contact transmits via radio with the control unit. In case of accidental impact, it determines the arrest and the immediate reopening as required by the Norm UNI EN 13241.
NO TOUCH SECURITY SYSTEM
Motor control
Nominal installation power 400V / 3+T - Frequency 50 Hz - Motor power from 0,37 a 0,75 kW
Single speed gear motor installed integrated into or outside the crossbeam
Technical details
Opening/closing speed 0,7 - 1,0 m/s - Resistance to curtain tears 3000 N/5cm - Rails min. traction resistance 50.000 N - Resistance to pressure difference CL 2 - Max. Inside dimensions 6000x6000 mm -
Max. Outside dimension 5000x5000 mm - Max. Strength on primary edge – Doors according to UNI EN 13241
BIM objects
Finishing
White – Army green
05
/
10

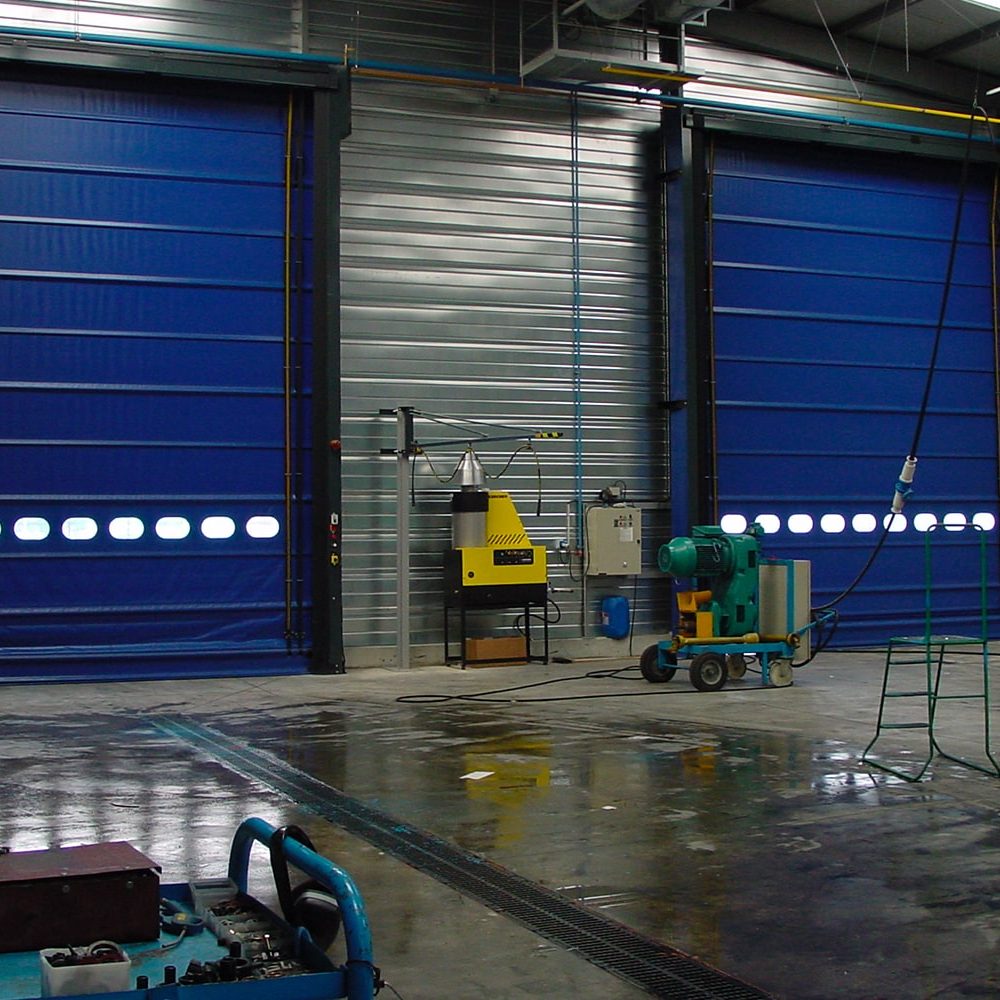

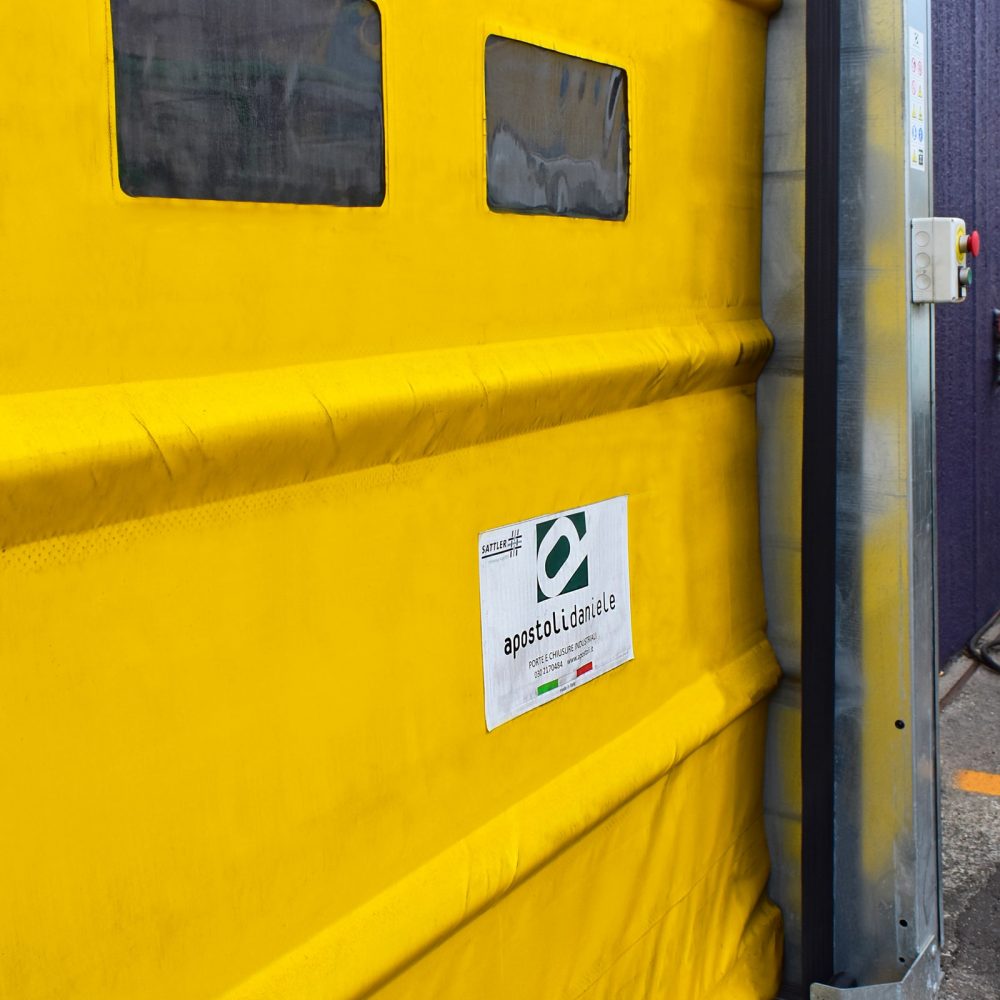

Rapid automatic fold up door F30
Manual-repair & anti-damage
Rapid fold-up door with antidamage system suitable for industrial buildings.
Specifications
Installazione:
Application: inside/inside, inside/outside
Pillars and crossbeam:
Pillars and crossbeam in press-bending plate in galvanised steel, RAL or stainless steel on demand
Curtain:
self-extinguishing PVC class II, anti UV and anti mould, stiffened by tubes.
Anti-raising:
system composed by two security photocells that block the door in case the raising belts accidentally hook one person or one object. Norm UNI EN 13241-1.
Manual-repair:
the flexible rails avoid tubes damages allowing a manual curtain reinsertion in case of coming out.
Anti-damage:
the flexible rails avoid permanent damages to the structure.
Windows:
windows or visibility stripes
Optional:
slatted curtain, sound-absorbing curtain, semi-automatic counterweight
Opening systems
Metal detector:
automatic opening command with magnetic loops metal mass sensor
Radar:
opening command for industrial doors. It detects both people and vehicles on surfaces from 1 to 20 square meters, adjustable according to need.
Remote control:
transmitter-operating range from 80 to 100 meters.
Security systems
The passage control is managed and controlled in safety through two transmitting photocells (one for each door side) and two receiving ones with amplifier. Mobile protection device on the closing edge consisting of a sensitive resistive strip that in case of contact transmits via radio with the control unit. In case of accidental impact, it determines the arrest and the immediate reopening as required by the Norm UNI EN 13241-1.
NO TOUCH SECURITY SYSTEM
Motor control
Nominal installation tension 400V / 3+T - Frequency 50 Hz – Motor power from 1,5 to 2,2 kW - Single speed gear motor installed outside the crossbeam under the cover.
Technical details
Opening closing/speed 0,6 m/s – Resistance to curtain tears 3000 N/5cm – Rails min. traction resistance 20.000 N – Resistance to pressure difference CL 2 - Max inside dimensions 8000x8000 mm – Max outside dimensions 7500x7500 mm - Max. Strength on primary edge UNI EN 13241-1 - Doors according to the Norm UNI EN 13241-1
BIM objects
Finishing
White – Army green
06
/
10

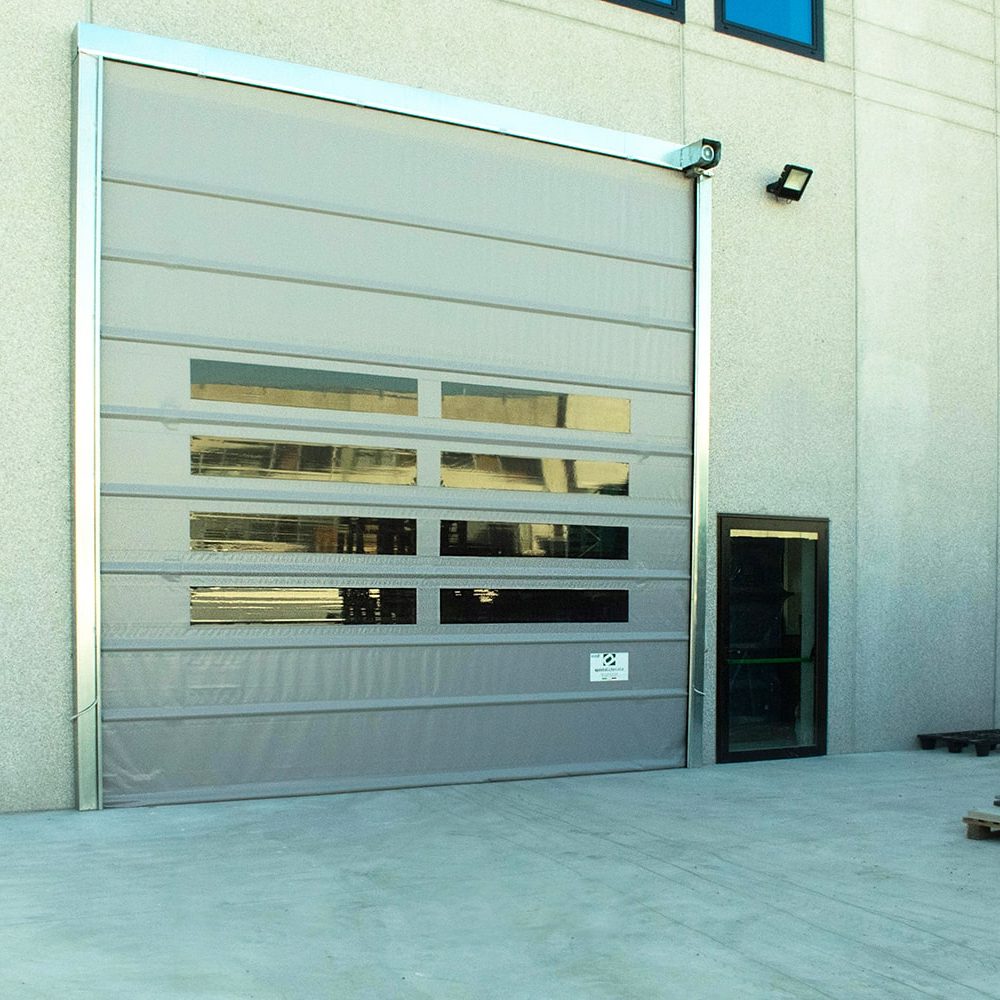

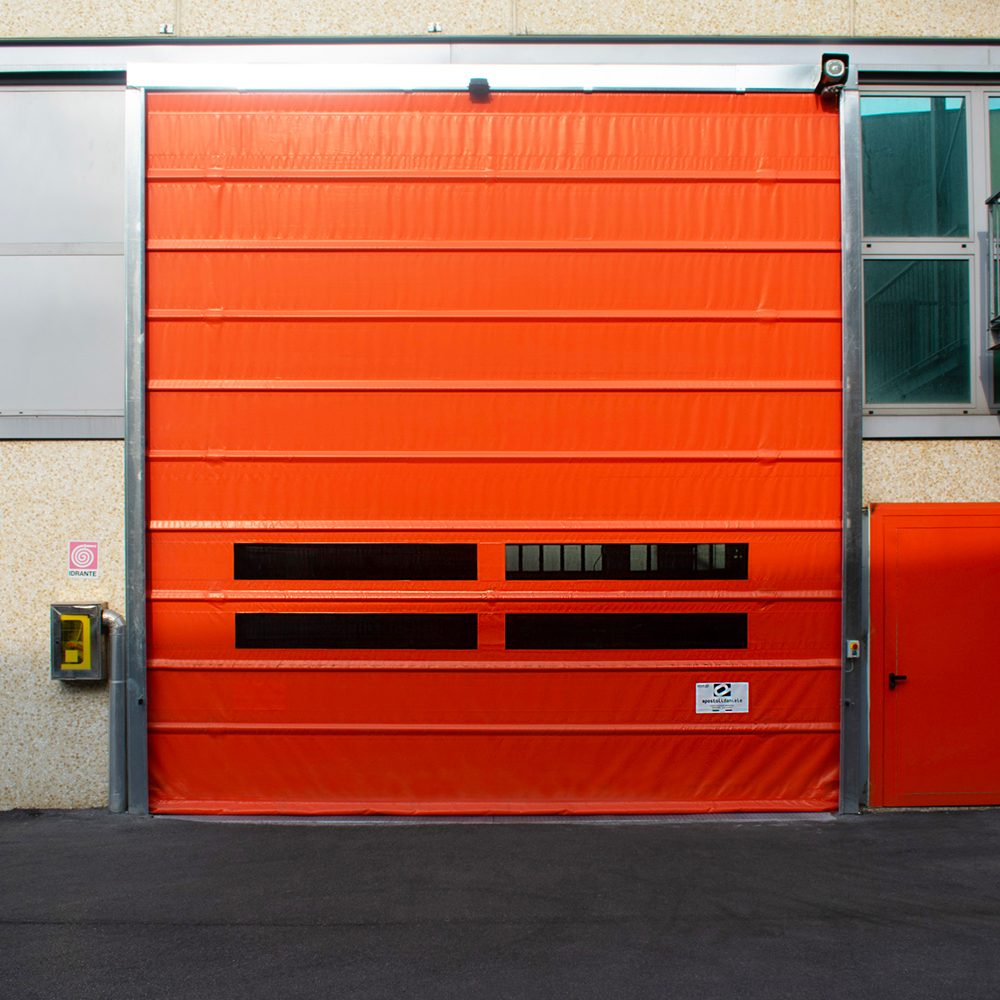

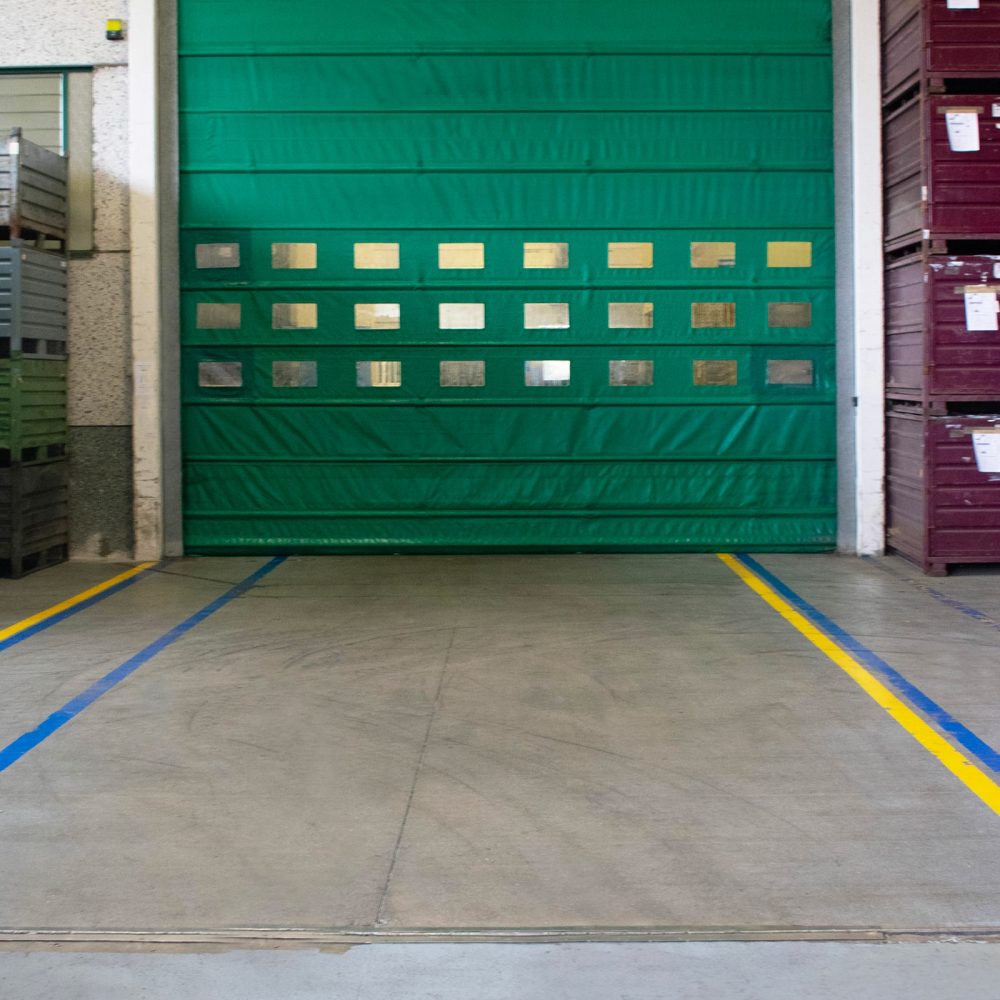

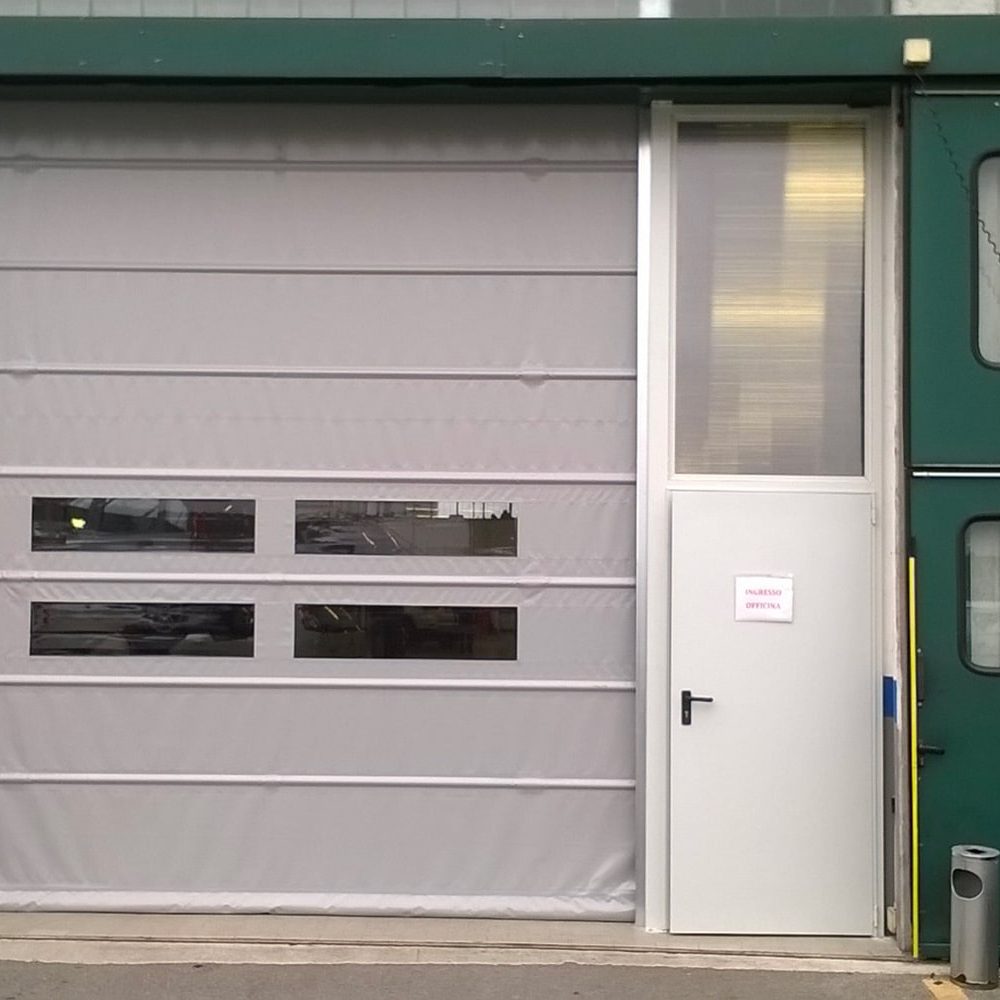

Rapid automatic fold up door E12
Rapid fold-up door suitable for industrial buildings.
Specifications
Application:
inside/inside, inside/outside
C Pillars:
variable section, in press-bending plate in galvanised steel
Crossbeam:
made with a steel tube and closed under a press-bending plate cover.
Curtain:
self-extinguishing PVC class II, high resistance for weight and texture, PVC rubbed, stiffened by metal tubes.
Anti-raising:
system composed by two security photocells that block the door in case the raising belts accidentally hook one person or one object. Norm UNI EN 13241-1.
Windows:
windows or visibility stripes
Optional:
slatted curtain, sound-absorbing curtain
Opening systems
Metal detector:
automatic opening command with magnetic loops metal mass sensor
Radar:
opening command for industrial doors. It detects both people and vehicles on surfaces from 1 to 20 square meters, adjustable according to need.
Remote control:
transmitter-operating range from 80 to 100 meters
Security systems
The passage control is managed and controlled in safety through two photocells. Mobile protection device on the closing edge consisting of a sensitive resistive strip that in case of contact transmits via radio with the control unit. In case of accidental impact, it determines the arrest and the immediate reopening as required by the Norm UNI EN 13241-1.
Motor control
Nominal installation tension 400V / 3+T - Frequency 50 Hz – Motor power from 0,37 to 0,75 kW - Gear motor with perpendicular axle to the crossbeam
Technical details
Opening/closing speed 0,4 m/s – Resistance to the cloth tears 3000 N/5cm – Max. dimensions 5000x5000 mm - Max. Strength on primary edge UNI EN 13241-1- Doors according to the Norm UNI EN 13241-1
- Resistence to pressure difference CL 2
BIM objects
Finishing
07
/
10

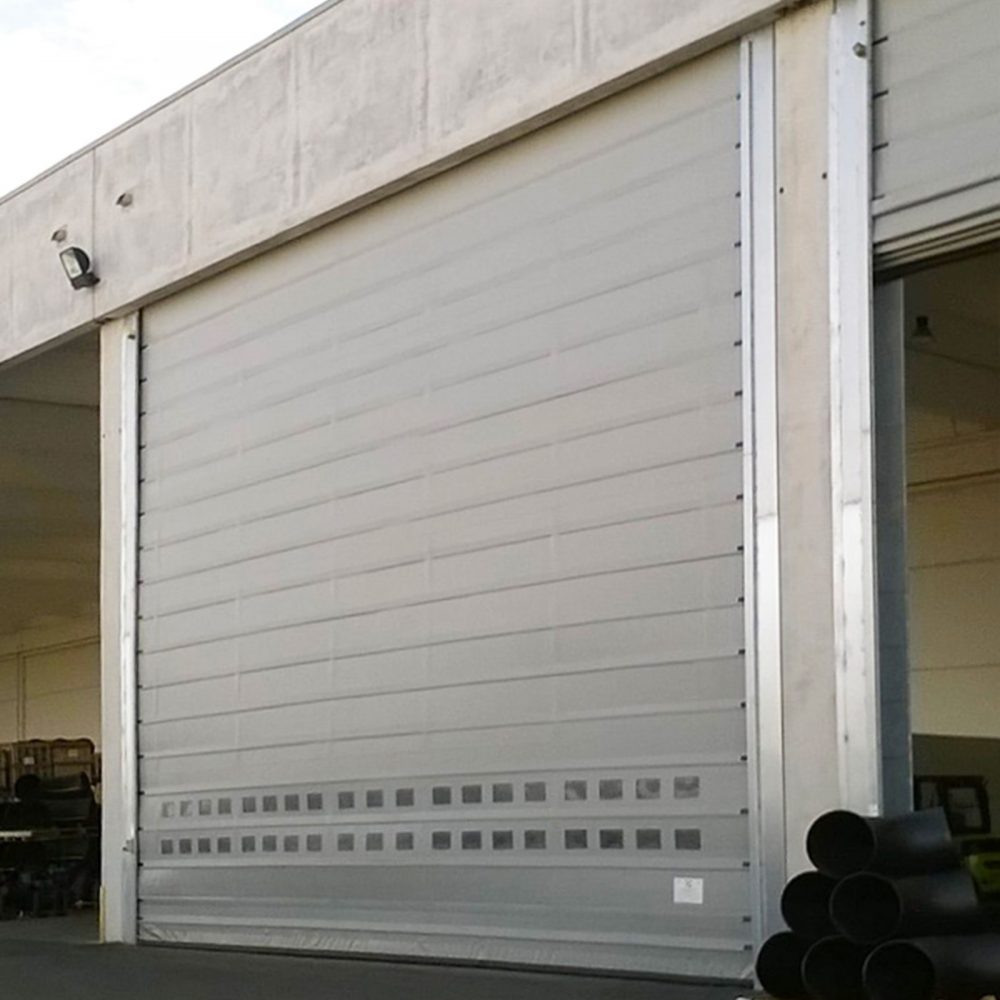

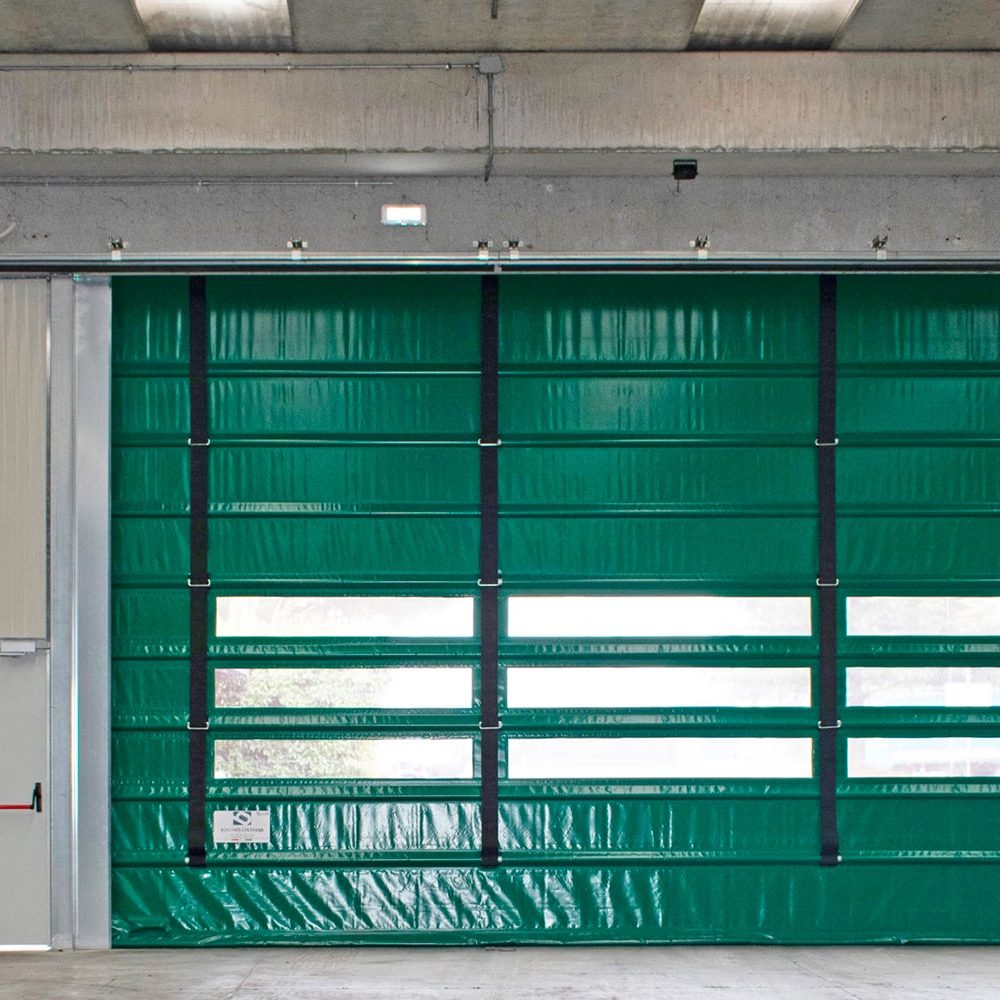

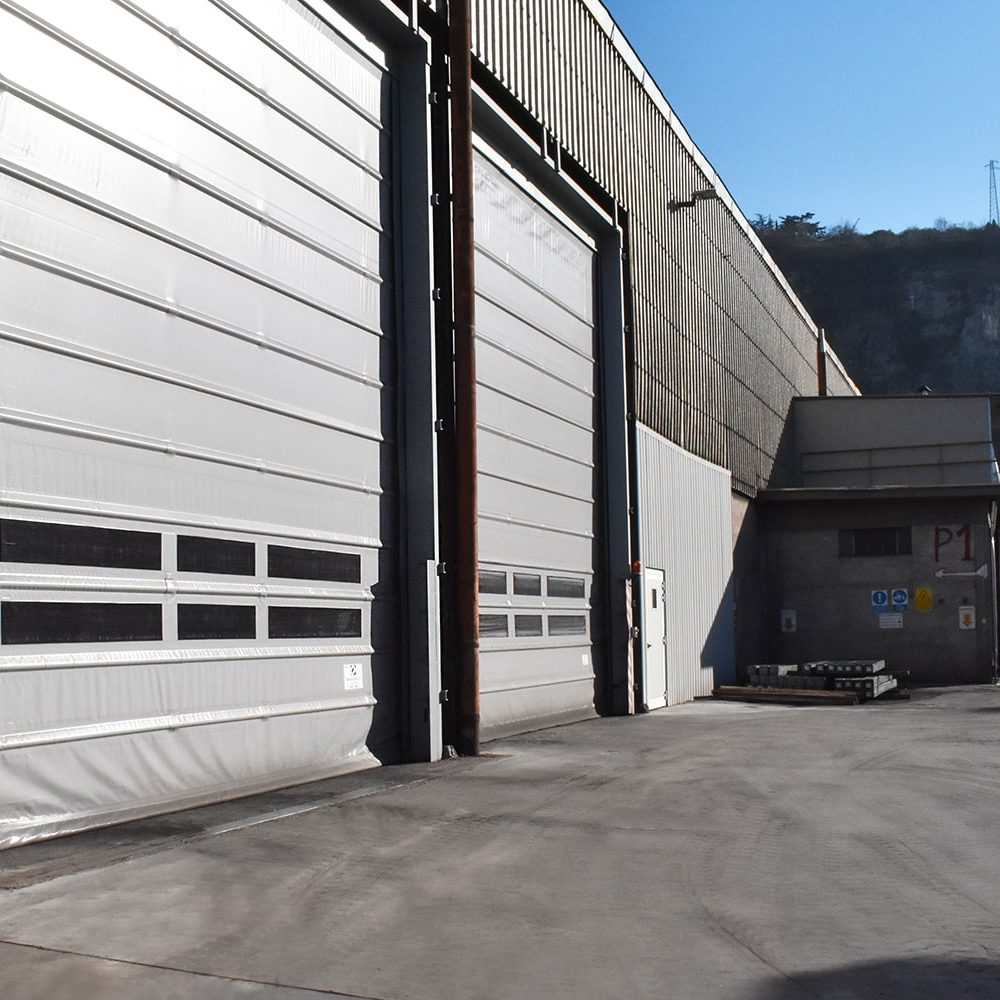

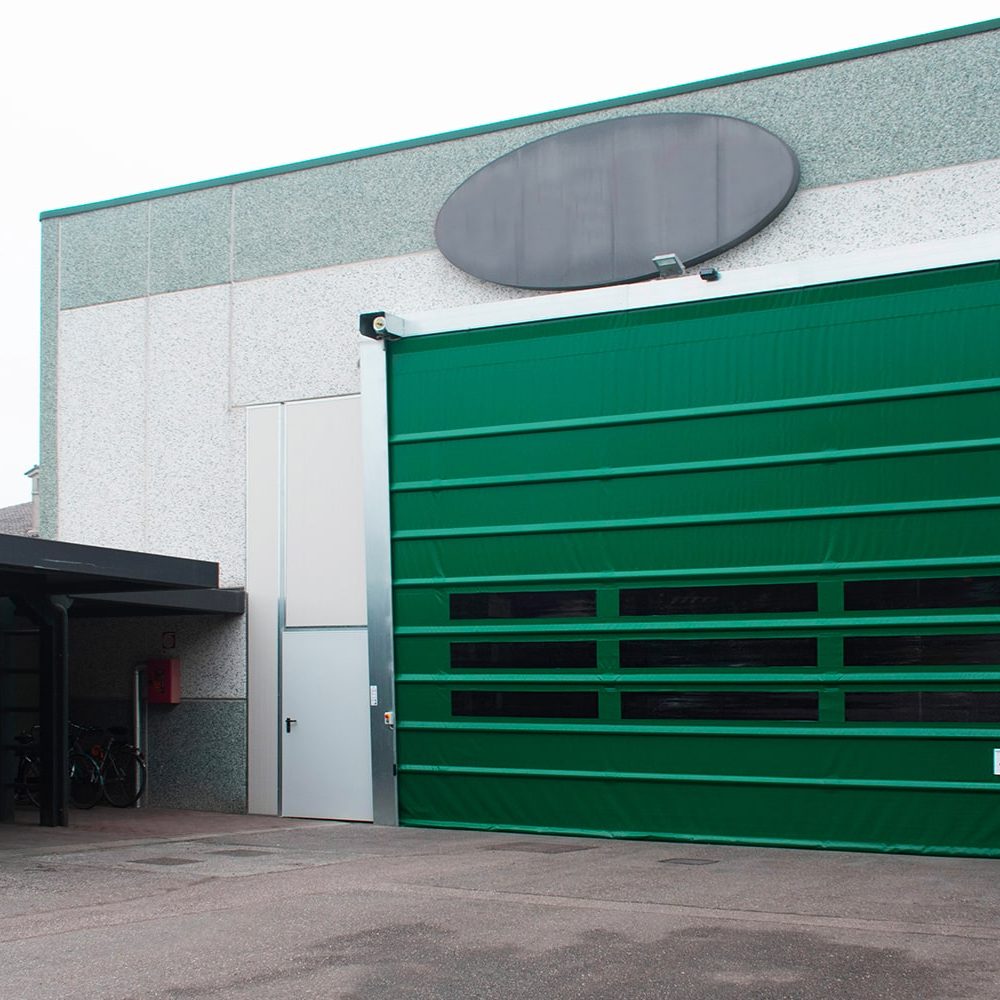

Rapid automatic fold up door E13
Big dimensions Rapid fold-up door suitable for industrial buildings.
Specifiche
Application:
inside/inside, inside/outside
C Pillars:
variable section, in press-bending plate in galvanised steel
Crossbeam:
made with a steel tube and closed under a press-bending plate cover.
Curtain:
self-extinguishing PVC class II, high resistance for weight and texture, PVC rubbed, stiffened by metal tubes.
Anti-raising:
system composed by two security photocells that block the door in case the raising belts accidentally hook one person or one object. Norm UNI EN 13241-1.
Windows:
windows or visibility stripes
Optional:
slatted curtain, sound-absorbing curtain
Opening systems
Metal detector:
automatic opening command with magnetic loops metal mass sensor
Radar:
opening command for industrial doors. It detects both people and vehicles on surfaces from 1 to 20 square meters, adjustable according to need.
Remote control:
transmitter-operating range from 80 to 100 meters.
Security systems
The passage control is managed and controlled in safety through two photocells. Mobile protection device on the closing edge consisting of a sensitive resistive strip that in case of contact transmits via radio with the control unit. In case of accidental impact, it determines the arrest and the immediate reopening as required by the Norm UNI EN 13241-1.
Motor control
Nominal installation tension 400V / 3+T - Frequency 50 Hz – Motor power from 0,75 to 1,1 kW - Gear motor with perpendicular axle to the crossbeam. Two motors if requested by the dimensions.
Technical details
Opening/closing speed 0,4 m/s – Resistance to the cloth tears 3000 N/5cm – Max. dimensions 8000X8000 mm - Max. Strength on primary edge UNI EN 13241-1 - Doors according to the Norm UNI EN 13241-1
- Resistence to pressure difference CL 2
BIM objects
Finishing
08
/
10

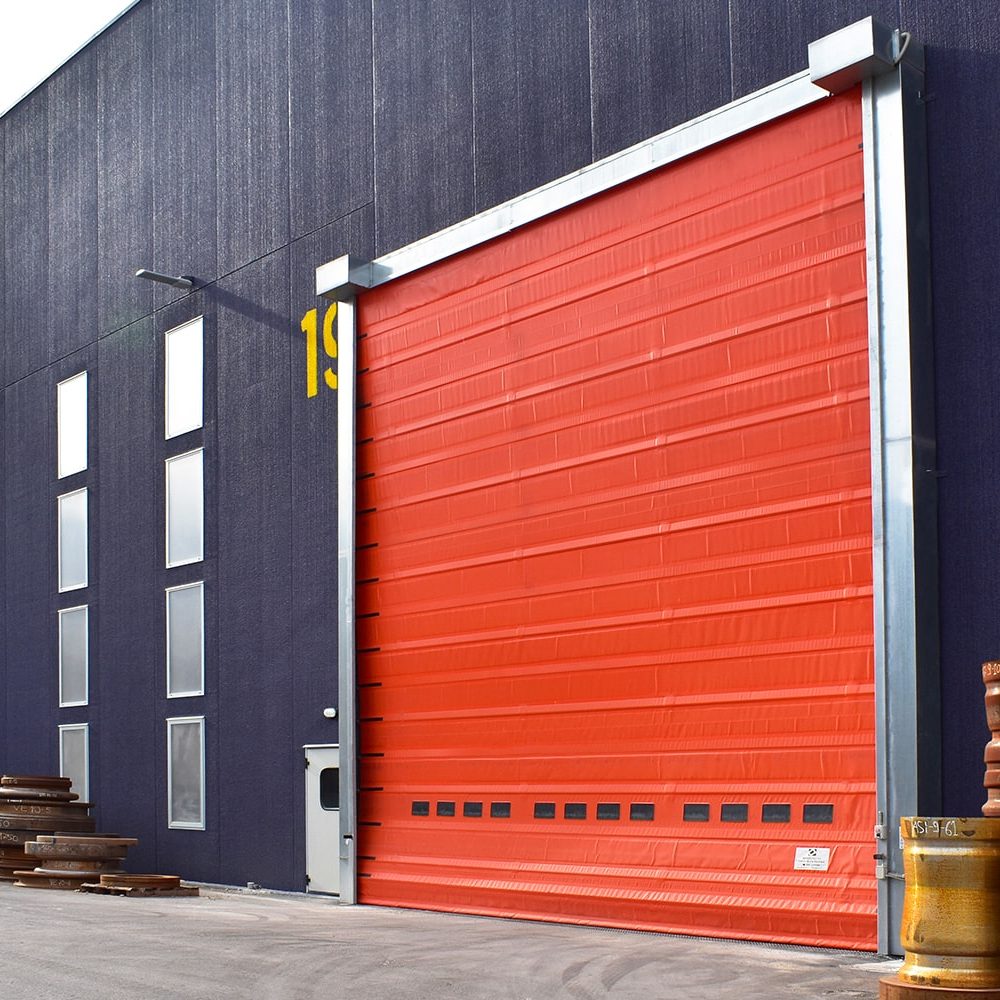

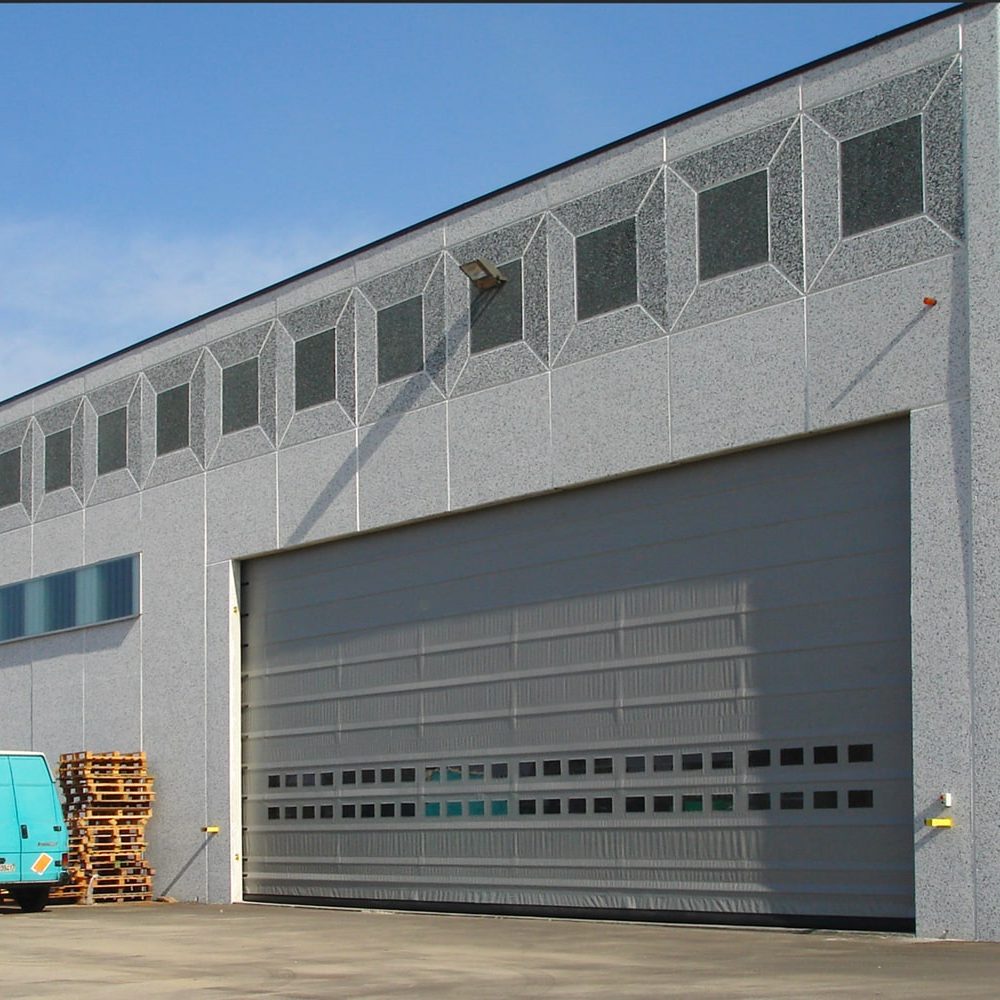

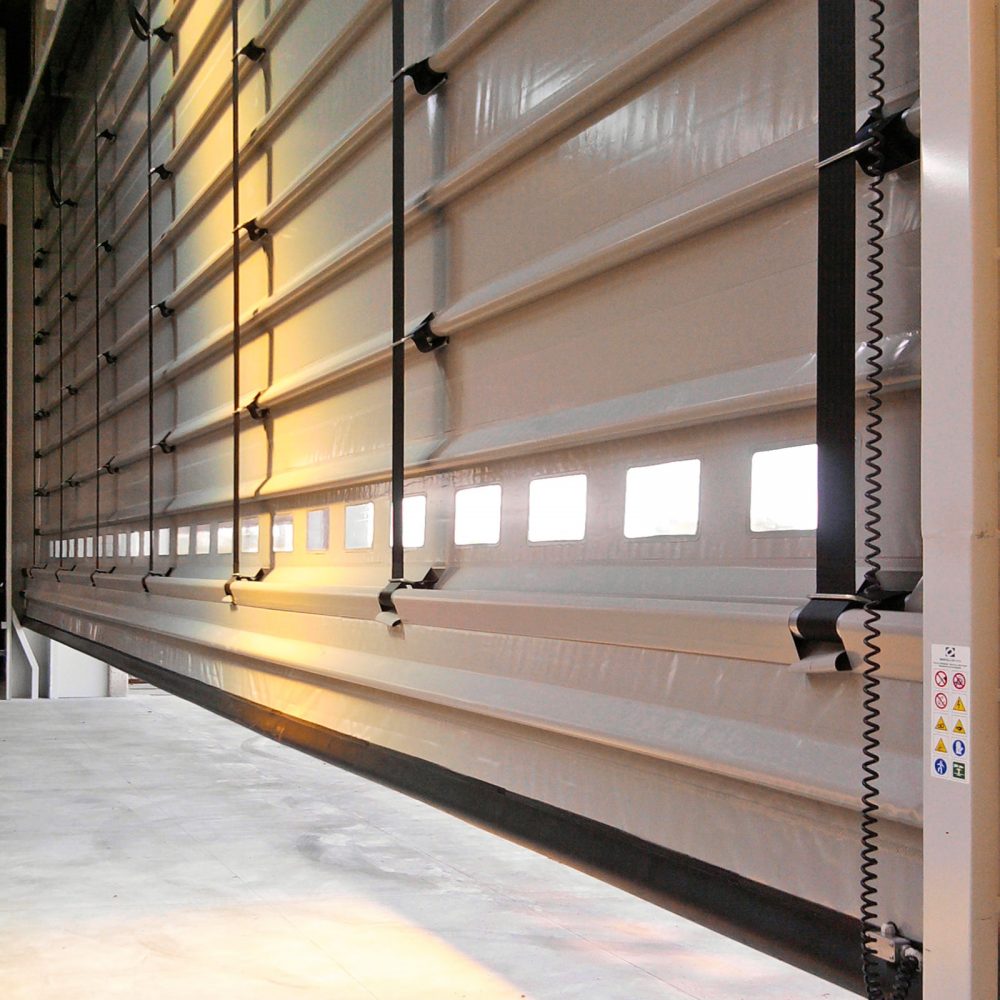

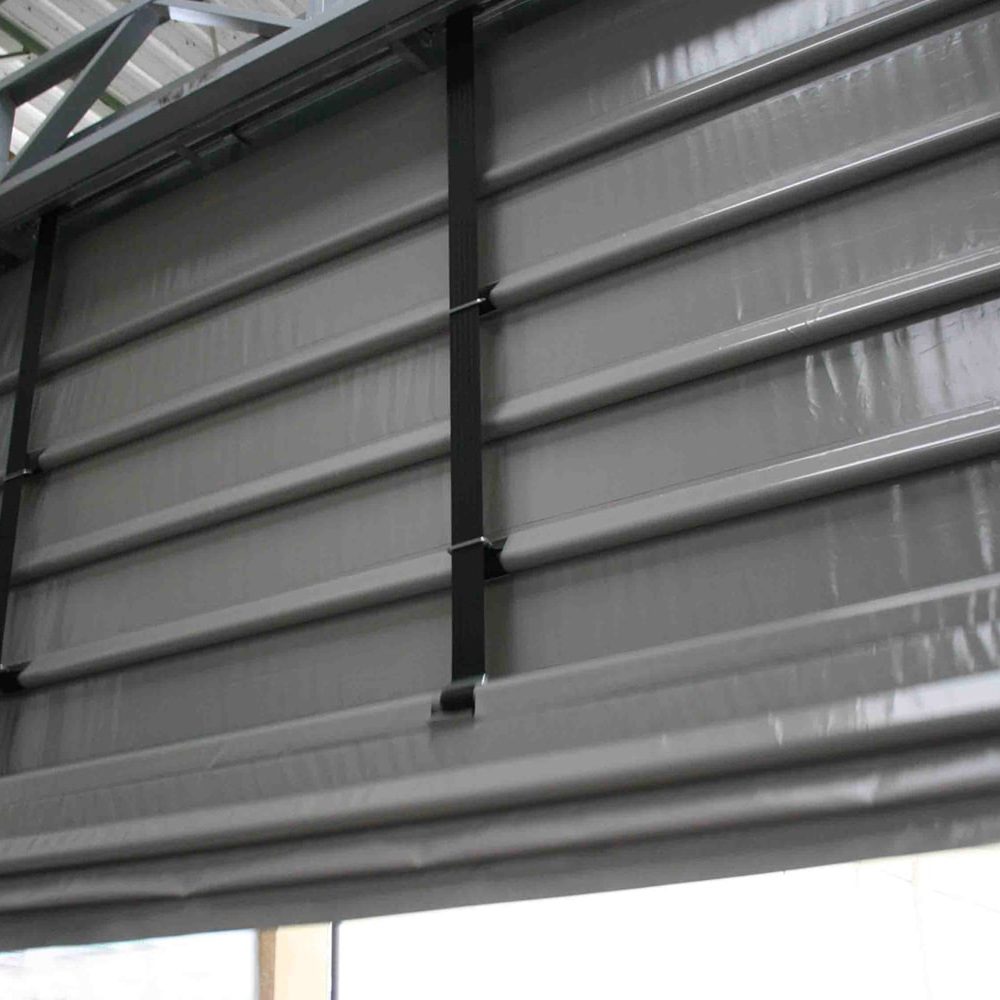

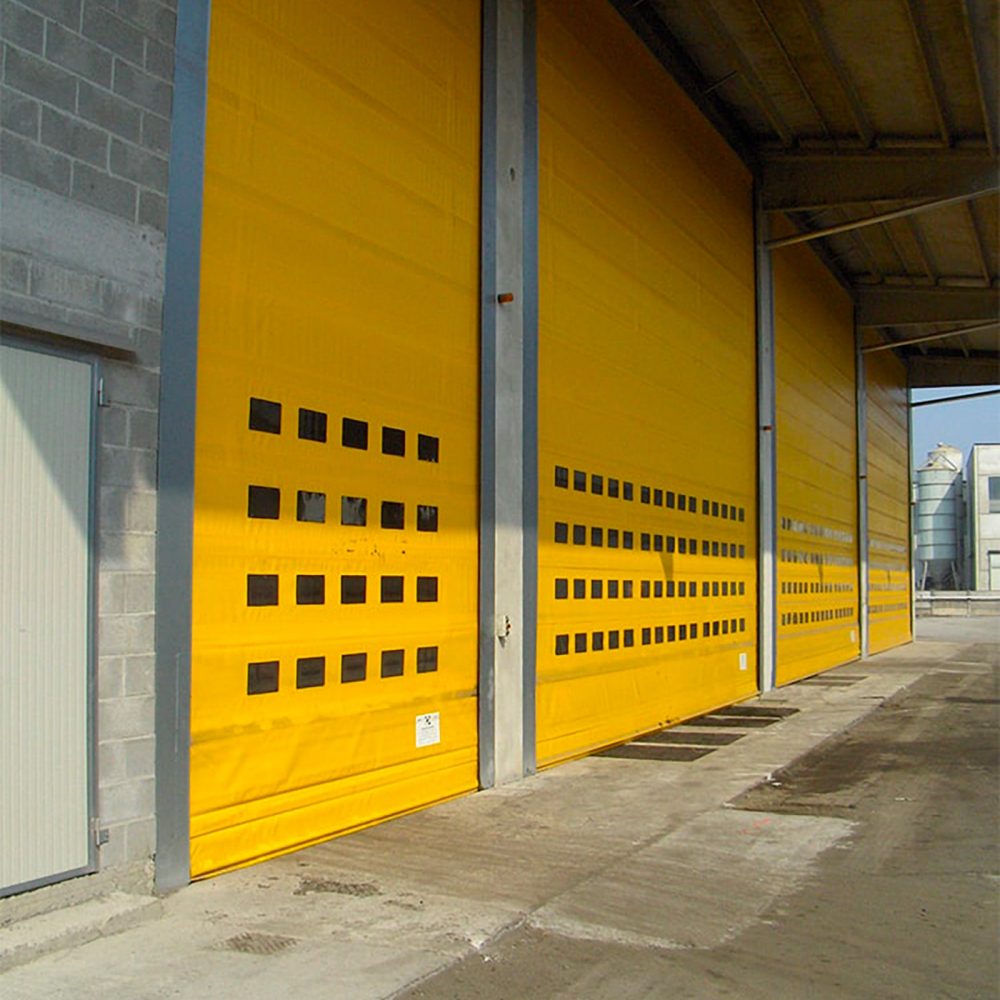

Rapid automatic fold up door DapBig
Rapid fold-up door suitable for big openings.
Specifications
Application:
inside/outside
C Pillars:
in press-bending plate in galvanised steel, RAL on demand
Crossbeam:
electro-welded self-supporting carpentry structure closed under a steel cover that supports the drive shaft for the curtain traction.
Curtain:
self-extinguishing PVC class II, anti UV and anti mould, stiffened by tubes.
Windows:
windows or visibility stripes
Anti-raising:
system composed by two security photocells that block the door in case the raising belts accidentally hook one person or one object. Norm UNI EN 13241-1.
Optional:
slatted curtain, sound-absorbing curtain
Opening systems
Metal detector:
automatic opening command with magnetic loops metal mass sensor
Radar:
opening command for industrial doors. It detects both people and vehicles on surfaces from 1 to 20 square meters, adjustable according to need.
Remote control:
transmitter-operating range from 80 to 100 meters.
Security systems
The passage control is managed and controlled in safety through two transmitting photocells (one for each door side) and two receiving ones with amplifier. Mobile protection device on the closing edge consisting of a sensitive resistive strip that in case of contact transmits via radio with the control unit. In case of accidental impact, it determines the arrest and the immediate reopening as required by the Norm UNI EN 13241-1.
NO TOUCH SECURITY SYSTEM
Motor control
Nominal installation tension 400V / 3+T - Frequency 50 Hz – Motor power from 1,5 to 2,2 kW - Gear motor/motors with perpendicular axle to the crossbeam. Two motors if requested by the dimensions.
Technical details
Opening/closing speed 0,2 m/s – Resistance to the cloth tears 3000 N/5cm - Rails min. traction resistance
50.000 N – Max. dimensions 15000x8000 mm - Max. Strength on primary edge UNI EN 13241-1
Doors according to the Norm UNI EN 13241-1
Finishing
White – Army green
09
/
10

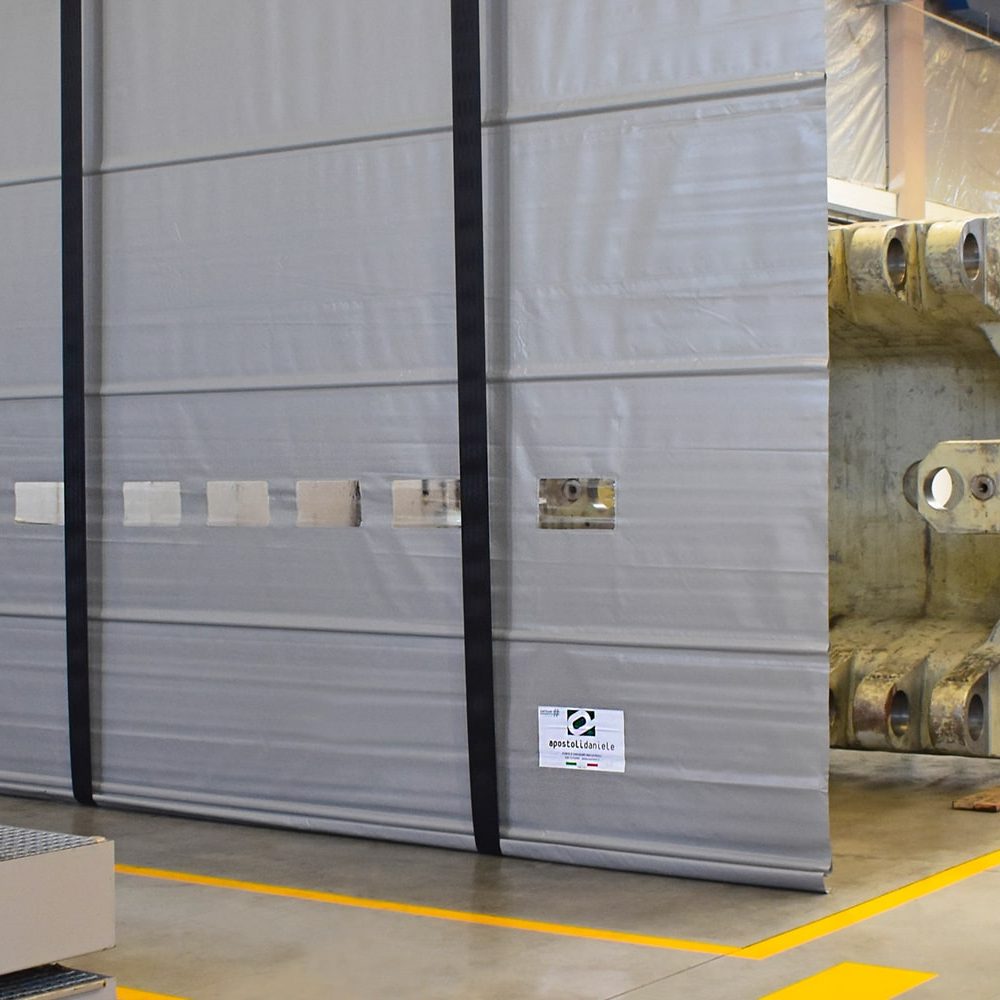

Special rapid door Arella
Special door consisting of a roto-translating cloth collection system without pillars
support for the structure and crossbeam. It allows the management of the logistic partition
environments without intervening structurally in an invasive way.
Specifications
Application:
inside/inside
C Pillars:
variable section, in press-bending plate in galvanised steel
Crossbeam:
realised with a steel tube
Curtain:
self-extinguishing PVC class II, anti UV and anti mould stiffened by tubes.
Optional:
windows or visibility stripes
Opening systems
Dead-man
Motor control
Nominal installation tension 400V / 3+T - Frequency 50 Hz – Motor power from 0,75 to 2,2 kW - Gear motor with perpendicular axle to the crossbeam. Two motors if requested by the dimensions.
Technical details
Opening/closing speed 0,2 m/s – Resistance to the cloth tears 3000 N/5cm – Max. Dimensions 40.000X10.000 mm - Max. Strength on primary edge UNI EN 13241-1 - Doors according to the Norm UNI EN 13241-1
Finishing
10
/
10

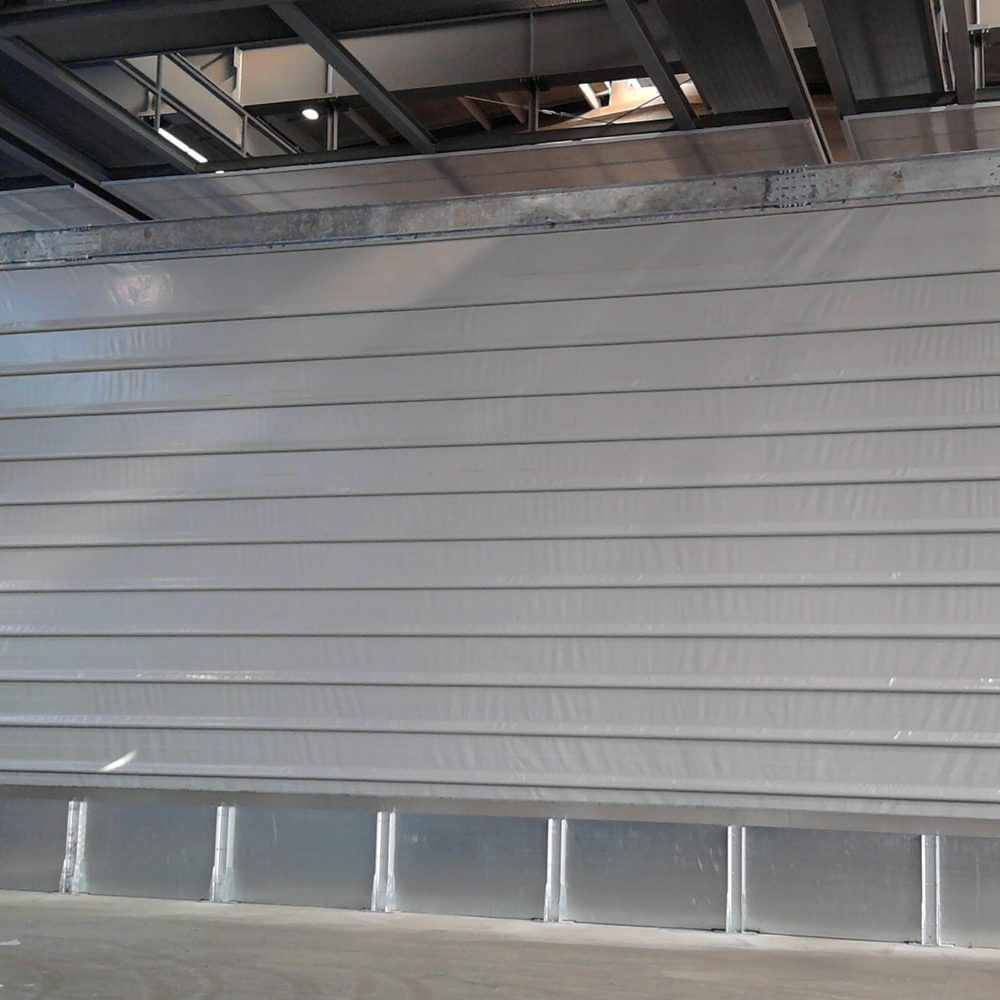

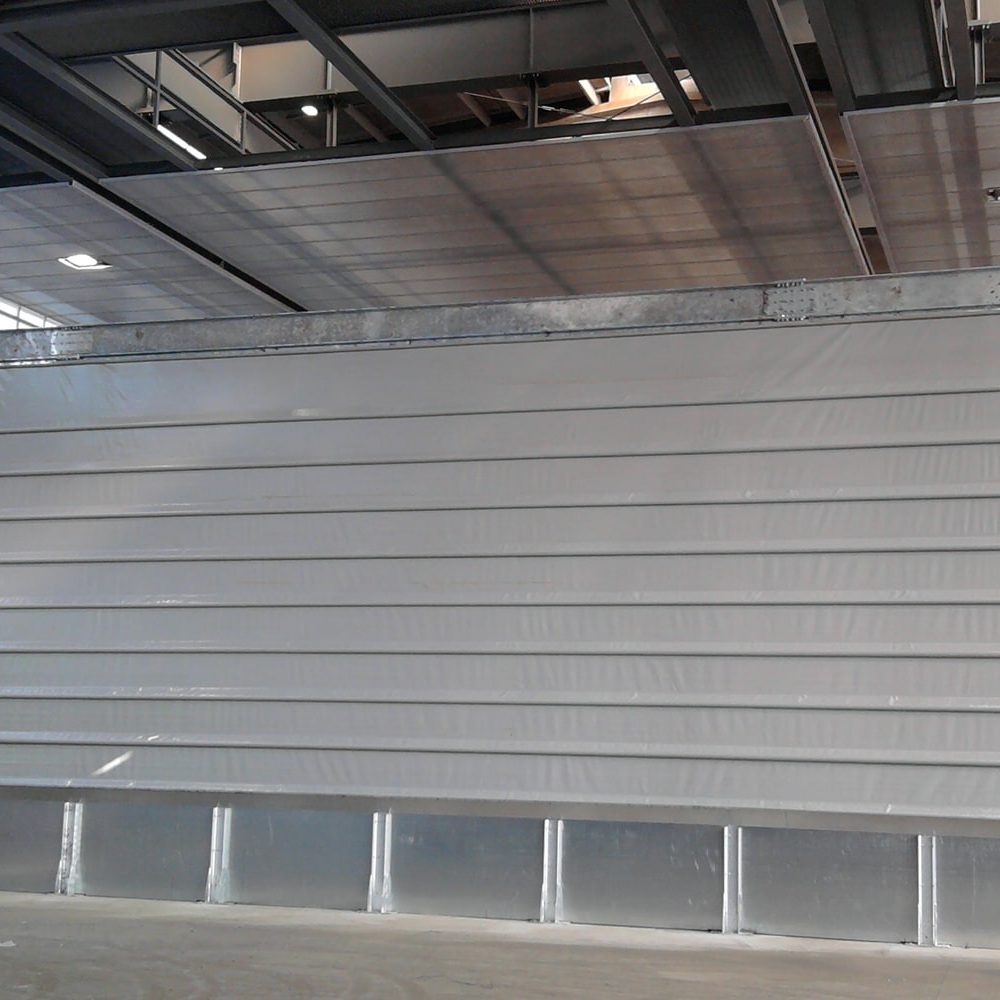

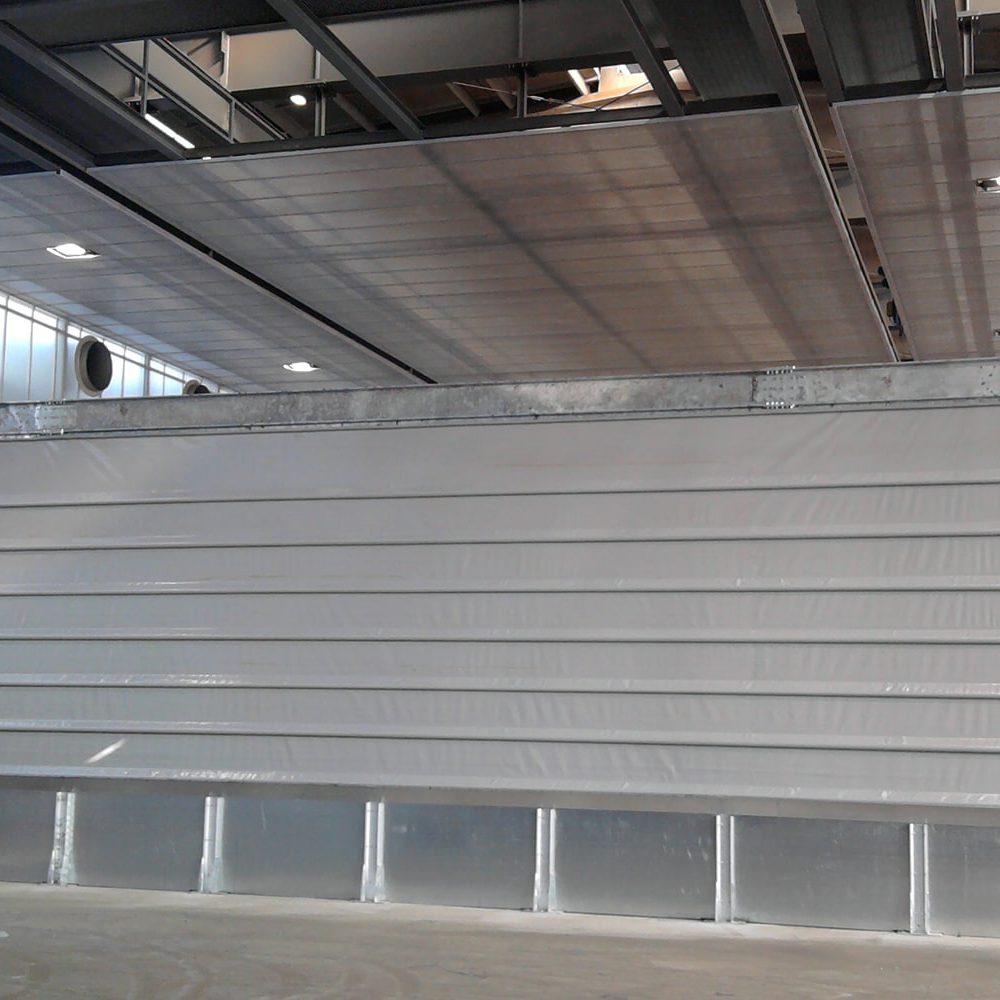

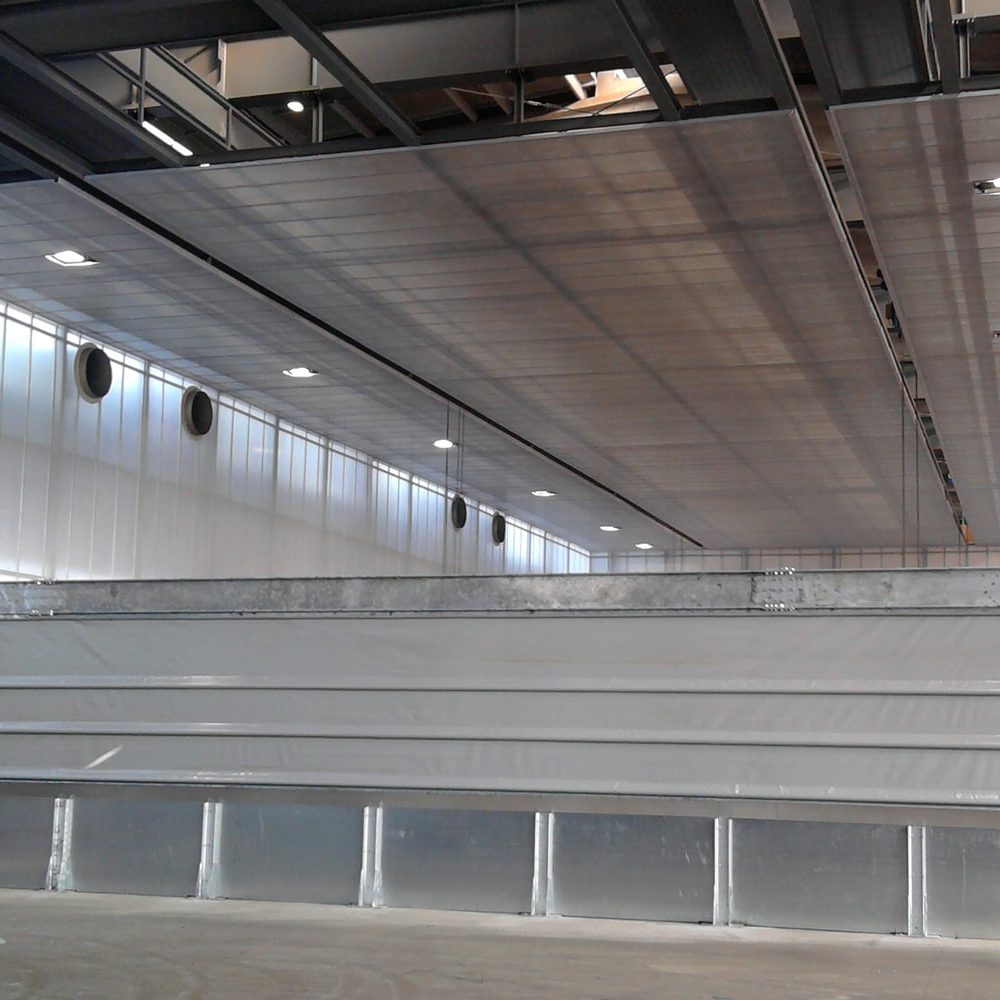

Rapid doors Reverso
Reverso model permits to manage the curtain opening from the top to the bottom, favoring industrial processes that mainly require superior access.
Specifications/
Application:
inside/inside, inside/outside
C Pillars:
variable section, in press-bending plate in galvanised steel
Crossbeam:
made with a steel tube and closed under a press-bending plate cover
Curtain:
self-extinguishing PVC class II, anti UV and anti mould stiffened by tubes
Anti-raising:
system composed by two security photocells that block the door in case the raising belts accidentally hook one person or one object.
Norm UNI EN 13241
Windows:
windows or visibility stripes
Motor control
Nominal installation power 400V / 3+T
-
Frequency 50 Hz
-
Motor power from da 1,5 a 2,2 kW
-
Gear motor with perpendicular axle to the crossbeam.
-
Two motors if requested by the dimensions.
Technical details
Opening/closing speed 0,2 m/s
-
Resistance to curtain tears 3000 N/5cm
-
Rails min. traction resistance 50.000 N
-
Max. Dimensions 15000x8000 mm
-
Max. Strength on primary edge UNI EN 13241
-
Doors according to the Norm UNI EN 13241
Finishing
